Class A· Gas

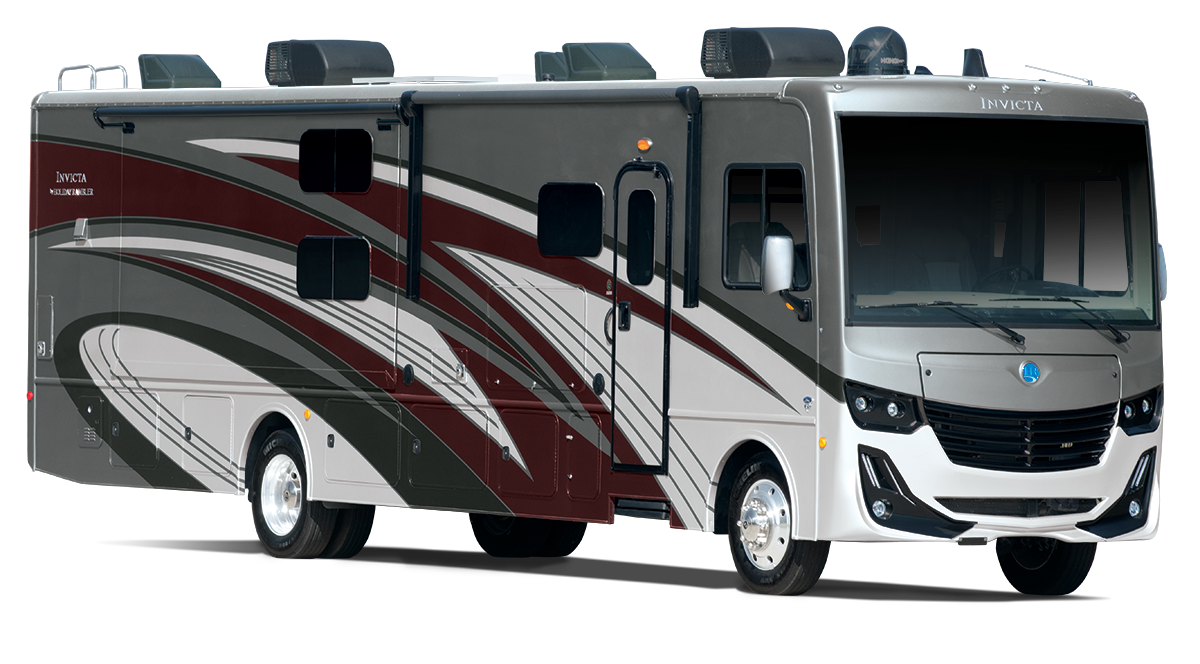

Invicta

A better way to explore.

Bus image

You’re an explorer. Spontaneous. You need no convincing to drop everything and hit the road for a week. And you never worry, because you know you’re traveling in the ultimate security blanket. The 2022 Invicta is your reliable road warrior, built to handle every hill and curve, and equipped with the perfect mix of day-to-day essentials and treat-yourself spoils. Live your best life, no matter where you go.

Why choose the 2022 Invicta?

Conquer every road with four-point fully automatic hydraulic leveling jacks and standard traction control.

Power up safer with 50-amp service and whole-house EMS.

Sleep more guests with a Hide-a-Loft electric drop-down bed.

Keep things running smoothly from your phone with the Illumaplex MultiPlex control system.

Fall asleep to your favorite shows thanks to the unidirectional KING® Controls TV jack antenna.

A stunning new full-paint option.

Chassis

Chassis Type

Ford® F-53 Motorhome Chassis

GVWR

22000

GCWR

26000

Rear Axle GAWR

15000

Front Axle GAWR

8000

Hitch Rating

8000

Tongue Rating

800

Front Suspension: Tapered Multi-Leaf

S

Rear Suspension: Tapered Multi-Leaf

S

4-Wheel Disc Brakes (Hydro Max) w/ABS

S

Tuned Sachs Shocks

S

Power Assisted Steering

S

Steering Damper (Front)

O

Liquid Springs®

O

Engine Equipment

Ford® 7.3L Triton V8, 350 HP w/468 lb. Torque

S

210 Amp Alternator

S

TorqShift® 6-Speed Automatic w/Overdrive and Tow/Haul Mode

S

Chassis Battery 78-amp

S

12V Heavy Duty Chassis Batteries

S

Tires and Wheels

Front and Rear Tires

235/80R 22.5G

Front and Rear Aluminum Wheels

S

Sizes

Wheelbase

228"

Exterior Length

34'-6"

Exterior Width

100"

Exterior Height

12'-10"

Interior Width

96"

Interior Height

82"

Interior Storage (cu.ft.)

153

Basement Storage (cu.ft.)

138

Awning Size

14'-0"

# of Slideouts

2

Capacities

Fuel (gal)

80

Fresh Water (gal)

100

Gray Waste Water (gal)

50

Black Waste Water (gal)

50

Appliance Propane (gal) (WC)

25

Water Heater (Gas/Electric) (gal)

10

Construction

Powerlock System™ 2 - Interlocking Walls to Roof

S

Dryseal Edge Coating for all Ceilings, Walls and Floors

S

Vacu-Bond Aluminum Framed Constructed Roof and Sidewalls

S

Premium Color Gel High Gloss Exterior Fiberglass Skin w/Matching Cap(s)

S

Quiet Ducted A/C System

S

Pass Through Basement Storage

S

Rotocast Molded Durable, Easy to Clean Service Compartment

S

Steel Constructed Entry Step Box

S

Electric Slideout Systems

S

Painted Steel Frame Chassis Construction

S

Full Coverage Heavy Duty Undercoating

S

CSA Build

O

Exterior

Fiberglass Front Cap Assembly

S

Fiberglass Rear Cap Assembly

S

Partial Paint w/Vinyl Graphics

S

Full-Body Paint

O

ABS Wheel Well Trims

S

TPO Roof

S

Legged Electric Patio Awning w/LED lighting

S

Slideout Awning Toppers Above All Slideouts

S

Entry Door w/Radiused Upper, Deadbolt and Screen Door

S

Entry Grab Handle

S

Automatic Entrance Steps

S

Bottom/Side Swing Radiused, Color Matched Fiberglass Luggage Doors

S

Slam Latch Luggage Door Handles

S

Single Pane Frameless Windows

S

Dual Pane Frameless Windows

O

Patio Lighting

S

Automatic Hydraulic Leveling Jacks

S

Front, Side and Rear Clearance and Marker lighting

S

Enclosed Exterior Waste Station w/Discharge Valves

S

Trailer Hitch w/7-Way Round Tow Connection

S

Unidirectional HD On-Air Antenna

S

Rear Ladder

S

Roof Vent Rain Covers

O

Roof Mount Satellite Dish Prep

S

KING® Universal Satellite System

O

LP Connection

S

Cab Exterior

Automotive One-Piece Windshield

S

Driver and Passenger Slider Windows

S

Automotive Style Windshield Wiper System

S

Remote Power/Heated Mirrors w/Turn Signals and Side Cameras

S

Daytime Running Lights

S

Fog Lamps

S

Cab Interior

Black Instrument Gauges w/Electronic Information Center

S

Steering Wheel w/Tilt Column

S

Dash Air Conditioning and Heat

S

Electronic Cruise Control

S

Windshield Wipers w/Delay

S

Switch for Power/Heated Mirrors

S

Auxiliary Start Switch

S

Generator On/Off Switch

S

Color Backup Monitor

S

Sony® 9" Stereo w/AM/FM/Bluetooth®/ MP3/USB - Phone Control - Android Auto™ & Apple® Car Play® w/Navigation - Siri Eyes Free - Built in HD Radio - Sirius/XM® Ready (Requires Subscription) – Backup camera

S

Driver Chair w/Reclining Back, Swivel and Manual Controls

S

Passenger Chair w/Reclining Back, Swivel and Manual Controls

S

Seat Belts - 3 Point Driver and Passenger

S

12V and USB Accessory Ports

S

110V AC Outlet

S

Automotive Style Dash w/Dual Monitors and Workstation

S

Engine Cover w/Snack Tray

S

Driver and Passenger ABS Side Consoles

S

Driver and Passenger Center Table

S

Front Power Roller Shade

S

Driver and Passenger Side Manual Roller Shades

S

Map Lights

S

Automatic Leveling Jacks Touchpad Controls

S

Hide-A-Loft™ Power Drop-Down Overhead Bunk

S

Interior

Sofa - Jack-knife

S

Sofa - Theatre Seating

O

Facing Booth Dinette w/Dream Dinette Table and Single Door Storage

S

Solid Surface Galley Top w/Sink Covers

S

Surf-X® Tops (Excluding Galley)

S

Feature Wall w/Accent Wall Covering

S

Galley Overhead Glass Inserts

S

Slideout Fascia - Hardwood Interior Wood Color Coordinating

S

Interior Soft Touch Vinyl Ceiling

S

Vinyl Tile Flooring

S

Full Extension Drawer Guides w/Latches

S

Coordinating Window Treatments

S

Hidden Hinge Cabinet Doors

S

Manual Night Roller Shades

S

Energy Efficient LED 3" Flush Mount Ceiling Lighting

S

Washer/Dryer Prep - Combo

S

Washer/Dryer - Combo

O

Washer/Dryer - Stackable

O

Interior Entry

Entry Steps w/Pressed Tops

S

Master Battery Disconnect Switch

S

Metal Interior Grab Handle

S

Kitchen

Stainless Steel Residential Refrigerator

S

LP RV-Style Refrigerator

O

Cooktop - 3-Burner

S

Stainless Steel OTR Convection Microwave

S

Tile Backsplash

S

Sink - Stainless Steel, Single Bowl

S

Sink - Stainless Steel, Double Bowl

S

Sink - Stainless Steel, Farmhouse-Style

S

Residential Faucet w/Pullout Sprayer

S

Adjustable Shelving

S

Pantry Storage

S

Power Vent

S

Bedroom or Bunk Area

King Bed

S

Designer Bedspread and Pillows w/Shams

S

Headboard

S

120V/USB Receptacles

S

Reading Lights

S

C-PAP Machine Prep in Bedroom Overhead

S

Lavy

Stainless Steel Lavy Sinks

S

Residential Faucet(s)

S

Medicine Cabinet w/Mirror

S

ABS Shower Surround

S

Glass Shower Door

S

Shower Skylight

S

Power Vent(s)

S

Designer Shower Head Assembly

S

Porcelain Toilet w/Macerator

S

Entertainment

LED TV (Bedroom)

S

LED TV (Living Area)

S

Living Area Ceiling Speakers

S

Bluetooth® Coach System in Bedroom w/Exterior Speakers

S

Exterior Entertainment Center w/LED TV

S

Electric & Utilities

Multiplex Wiring System

S

Batteries: (4) 6V Deep Cycle House Batteries

S

Service Panel: 50 Amp, 120 Volt

S

Power Converter: 55 Amp

S

Inverter - Single 2000w

S

Generator - 5500W Onan® Quiet

S

Auto Gen Start

S

Transfer Switch w/Reverse Polarity Protection

S

A/C - Dual 13,500 BTU

S

Furnace - 30,000 BTU

S

CO and Smoke Detectors, Fire Extinguisher

S

Gravity Water Fill

S

Water Heater Bypass System

S

City Water Hookup

S

Exterior Shower

S

High Capacity Water Pump

S

Water Filtration System (Whole Coach)

S

Black Holding Tank San-T-Flush System

S

Cable TV/Satellite Hookup

S

Wi-Fi Ranger™ Sky4

S

Solar Panel - 100W

S

Chassis

Chassis Type

Ford® F-53 Motorhome Chassis

GVWR

22000

GCWR

26000

Rear Axle GAWR

15000

Front Axle GAWR

8000

Hitch Rating

8000

Tongue Rating

800

Front Suspension: Tapered Multi-Leaf

S

Rear Suspension: Tapered Multi-Leaf

S

4-Wheel Disc Brakes (Hydro Max) w/ABS

S

Tuned Sachs Shocks

S

Power Assisted Steering

S

Steering Damper (Front)

O

Liquid Springs®

O

Engine Equipment

Ford® 7.3L Triton V8, 350 HP w/468 lb. Torque

S

210 Amp Alternator

S

TorqShift® 6-Speed Automatic w/Overdrive and Tow/Haul Mode

S

Chassis Battery 78-amp

S

12V Heavy Duty Chassis Batteries

S

Tires and Wheels

Front and Rear Tires

235/80R 22.5G

Front and Rear Aluminum Wheels

S

Sizes

Wheelbase

242"

Exterior Length

35'-9"

Exterior Width

100"

Exterior Height

12'-10"

Interior Width

96"

Interior Height

82"

Interior Storage (cu.ft.)

128

Basement Storage (cu.ft.)

134

Awning Size

20'-0"

# of Slideouts

2

Capacities

Fuel (gal)

80

Fresh Water (gal)

100

Gray Waste Water (gal)

50

Black Waste Water (gal)

50

Appliance Propane (gal) (WC)

25

Water Heater (Gas/Electric) (gal)

10

Construction

Powerlock System™ 2 - Interlocking Walls to Roof

S

Dryseal Edge Coating for all Ceilings, Walls and Floors

S

Vacu-Bond Aluminum Framed Constructed Roof and Sidewalls

S

Premium Color Gel High Gloss Exterior Fiberglass Skin w/Matching Cap(s)

S

Quiet Ducted A/C System

S

Pass Through Basement Storage

S

Rotocast Molded Durable, Easy to Clean Service Compartment

S

Heated Fresh Water and Holding Tank Compartments (w/Furnace Operational)

S

Steel Constructed Entry Step Box

S

Electric Slideout Systems

S

Painted Steel Frame Chassis Construction

S

Full Coverage Heavy Duty Undercoating

S

CSA Build

O

Exterior

Fiberglass Front Cap Assembly

S

Fiberglass Rear Cap Assembly

S

Partial Paint w/Vinyl Graphics

S

Full-Body Paint

O

ABS Wheel Well Trims

S

TPO Roof

S

Legged Electric Patio Awning w/LED lighting

S

Slideout Awning Toppers Above All Slideouts

S

Entry Door w/Radiused Upper, Deadbolt and Screen Door

S

Entry Grab Handle

S

Automatic Entrance Steps

S

Bottom/Side Swing Radiused, Color Matched Fiberglass Luggage Doors

S

Slam Latch Luggage Door Handles

S

Single Pane Frameless Windows

S

Dual Pane Frameless Windows

O

Patio Lighting

S

Automatic Hydraulic Leveling Jacks

S

Front, Side and Rear Clearance and Marker lighting

S

Enclosed Exterior Waste Station w/Discharge Valves

S

Trailer Hitch w/7-Way Round Tow Connection

S

Unidirectional HD On-Air Antenna

S

Rear Ladder

S

Roof Vent Rain Covers

O

Roof Mount Satellite Dish Prep

S

KING® Universal Satellite System

O

LP Connection

S

Cab Exterior

Automotive One-Piece Windshield

S

Driver and Passenger Slider Windows

S

Automotive Style Windshield Wiper System

S

Remote Power/Heated Mirrors w/Turn Signals and Side Cameras

S

Daytime Running Lights

S

Fog Lamps

S

Cab Interior

Black Instrument Gauges w/Electronic Information Center

S

Steering Wheel w/Tilt Column

S

Dash Air Conditioning and Heat

S

Electronic Cruise Control

S

Windshield Wipers w/Delay

S

Switch for Power/Heated Mirrors

S

Auxiliary Start Switch

S

Generator On/Off Switch

S

Color Backup Monitor

S

Sony® 9" Stereo w/AM/FM/Bluetooth®/ MP3/USB - Phone Control - Android Auto™ & Apple® Car Play® w/Navigation - Siri Eyes Free - Built in HD Radio - Sirius/XM® Ready (Requires Subscription) – Backup camera

S

Driver Chair w/Reclining Back, Swivel and Manual Controls

S

Passenger Chair w/Reclining Back, Swivel and Manual Controls

S

Seat Belts - 3 Point Driver and Passenger

S

12V and USB Accessory Ports

S

110V AC Outlet

S

Automotive Style Dash w/Dual Monitors and Workstation

S

Engine Cover w/Snack Tray

S

Driver and Passenger ABS Side Consoles

S

Driver and Passenger Center Table

S

Front Power Roller Shade

S

Driver and Passenger Side Manual Roller Shades

S

Map Lights

S

Automatic Leveling Jacks Touchpad Controls

S

Hide-A-Loft™ Power Drop-Down Overhead Bunk

S

Interior

Sofa - Jack-knife

S

Sofa - Theatre Seating

O

Facing Booth Dinette w/Dream Dinette Table and Single Door Storage

S

Solid Surface Galley Top w/Sink Covers

S

Surf-X® Tops (Excluding Galley)

S

Feature Wall w/Accent Wall Covering

S

Galley Overhead Glass Inserts

S

Slideout Fascia - Hardwood Interior Wood Color Coordinating

S

Electric Fireplace (Living Area)

S

Interior Soft Touch Vinyl Ceiling

S

Vinyl Tile Flooring

S

Full Extension Drawer Guides w/Latches

S

Coordinating Window Treatments

S

Hidden Hinge Cabinet Doors

S

Manual Night Roller Shades

S

Energy Efficient LED 3" Flush Mount Ceiling Lighting

S

Washer/Dryer Prep - Combo

S

Washer/Dryer - Combo

O

Washer/Dryer - Stackable

O

Interior Entry

Entry Steps w/Pressed Tops

S

Master Battery Disconnect Switch

S

Metal Interior Grab Handle

S

Kitchen

Stainless Steel Residential Refrigerator

S

LP RV-Style Refrigerator

O

Cooktop - 3-Burner

S

Stainless Steel OTR Convection Microwave

S

Tile Backsplash

S

Sink - Stainless Steel, Single Bowl

S

Sink - Stainless Steel, Double Bowl

S

Sink - Stainless Steel, Farmhouse-Style

S

Residential Faucet w/Pullout Sprayer

S

Adjustable Shelving

S

Pantry Storage

S

Power Vent

S

Bedroom or Bunk Area

King Bed

S

Designer Bedspread and Pillows w/Shams

S

Headboard

S

120V/USB Receptacles

S

Reading Lights

S

C-PAP Machine Prep in Bedroom Overhead

S

Lavy

Stainless Steel Lavy Sinks

S

Residential Faucet(s)

S

Medicine Cabinet w/Mirror

S

ABS Shower Surround

S

Glass Shower Door

S

Shower Skylight

S

Power Vent(s)

S

Designer Shower Head Assembly

S

Porcelain Toilet w/Macerator

S

Porcelain Toilet

NA

Entertainment

LED TV (Bedroom)

S

LED TV (Living Area)

S

Living Area Ceiling Speakers

S

Bluetooth® Coach System in Bedroom w/Exterior Speakers

S

Exterior Entertainment Center w/LED TV

S

Electric & Utilities

Multiplex Wiring System

S

Batteries: (4) 6V Deep Cycle House Batteries

S

Service Panel: 50 Amp, 120 Volt

S

Power Converter: 55 Amp

S

Inverter - Single 2000w

S

Generator - 5500W Onan® Quiet

S

Auto Gen Start

S

Transfer Switch w/Reverse Polarity Protection

S

A/C - Dual 13,500 BTU

S

Furnace - 34,000 BTU

S

CO and Smoke Detectors, Fire Extinguisher

S

Gravity Water Fill

S

Water Heater Bypass System

S

City Water Hookup

S

Exterior Shower

S

High Capacity Water Pump

S

Water Filtration System (Whole Coach)

S

Black Holding Tank San-T-Flush System

S

Cable TV/Satellite Hookup

S

Wi-Fi Ranger™ Sky4

S

Solar Panel - 100W

S

Chassis

Chassis Type

Ford® F-53 Motorhome Chassis

GVWR

22000

GCWR

26000

Rear Axle GAWR

15000

Front Axle GAWR

8000

Hitch Rating

8000

Tongue Rating

800

Front Suspension: Tapered Multi-Leaf

S

Rear Suspension: Tapered Multi-Leaf

S

4-Wheel Disc Brakes (Hydro Max) w/ABS

S

Tuned Sachs Shocks

S

Power Assisted Steering

S

Steering Damper (Front)

O

Liquid Springs®

O

Engine Equipment

Ford® 7.3L Triton V8, 350 HP w/468 lb. Torque

S

210 Amp Alternator

S

TorqShift® 6-Speed Automatic w/Overdrive and Tow/Haul Mode

S

Chassis Battery 78-amp

S

12V Heavy Duty Chassis Batteries

S

Tires and Wheels

Front and Rear Tires

235/80R 22.5G

Front and Rear Aluminum Wheels

S

Sizes

Wheelbase

242"

Exterior Length

35'-9"

Exterior Width

100"

Exterior Height

12'-10"

Interior Width

96"

Interior Height

82"

Interior Storage (cu.ft.)

128

Basement Storage (cu.ft.)

134

Awning Size

20'-0"

# of Slideouts

2

Capacities

Fuel (gal)

80

Fresh Water (gal)

100

Gray Waste Water (gal)

50

Black Waste Water (gal)

50

Appliance Propane (gal) (WC)

25

Water Heater (Gas/Electric) (gal)

10

Construction

Powerlock System™ 2 - Interlocking Walls to Roof

S

Dryseal Edge Coating for all Ceilings, Walls and Floors

S

Vacu-Bond Aluminum Framed Constructed Roof and Sidewalls

S

Premium Color Gel High Gloss Exterior Fiberglass Skin w/Matching Cap(s)

S

Quiet Ducted A/C System

S

Pass Through Basement Storage

S

Rotocast Molded Durable, Easy to Clean Service Compartment

S

Heated Fresh Water and Holding Tank Compartments (w/Furnace Operational)

S

Steel Constructed Entry Step Box

S

Electric Slideout Systems

S

Painted Steel Frame Chassis Construction

S

Full Coverage Heavy Duty Undercoating

S

CSA Build

O

Exterior

Fiberglass Front Cap Assembly

S

Fiberglass Rear Cap Assembly

S

Partial Paint w/Vinyl Graphics

S

Full-Body Paint

O

ABS Wheel Well Trims

S

TPO Roof

S

Legged Electric Patio Awning w/LED lighting

S

Slideout Awning Toppers Above All Slideouts

S

Entry Door w/Radiused Upper, Deadbolt and Screen Door

S

Entry Grab Handle

S

Automatic Entrance Steps

S

Bottom/Side Swing Radiused, Color Matched Fiberglass Luggage Doors

S

Slam Latch Luggage Door Handles

S

Single Pane Frameless Windows

S

Dual Pane Frameless Windows

O

Patio Lighting

S

Automatic Hydraulic Leveling Jacks

S

Front, Side and Rear Clearance and Marker lighting

S

Enclosed Exterior Waste Station w/Discharge Valves

S

Trailer Hitch w/7-Way Round Tow Connection

S

Unidirectional HD On-Air Antenna

S

Rear Ladder

S

Roof Vent Rain Covers

O

Roof Mount Satellite Dish Prep

S

KING® Universal Satellite System

O

LP Connection

S

Cab Exterior

Automotive One-Piece Windshield

S

Driver and Passenger Slider Windows

S

Automotive Style Windshield Wiper System

S

Remote Power/Heated Mirrors w/Turn Signals and Side Cameras

S

Daytime Running Lights

S

Fog Lamps

S

Cab Interior

Black Instrument Gauges w/Electronic Information Center

S

Steering Wheel w/Tilt Column

S

Dash Air Conditioning and Heat

S

Electronic Cruise Control

S

Windshield Wipers w/Delay

S

Switch for Power/Heated Mirrors

S

Auxiliary Start Switch

S

Generator On/Off Switch

S

Color Backup Monitor

S

Sony® 9" Stereo w/AM/FM/Bluetooth®/ MP3/USB - Phone Control - Android Auto™ & Apple® Car Play® w/Navigation - Siri Eyes Free - Built in HD Radio - Sirius/XM® Ready (Requires Subscription) – Backup camera

S

Driver Chair w/Reclining Back, Swivel and Manual Controls

S

Passenger Chair w/Reclining Back, Swivel and Manual Controls

S

Seat Belts - 3 Point Driver and Passenger

S

12V and USB Accessory Ports

S

110V AC Outlet

S

Automotive Style Dash w/Dual Monitors and Workstation

S

Engine Cover w/Snack Tray

S

Driver and Passenger ABS Side Consoles

S

Driver and Passenger Center Table

S

Front Power Roller Shade

S

Driver and Passenger Side Manual Roller Shades

S

Map Lights

S

Automatic Leveling Jacks Touchpad Controls

S

Hide-A-Loft™ Power Drop-Down Overhead Bunk

S

Interior

Sofa - Jack-knife

S

Sofa - Theatre Seating

O

Facing Booth Dinette w/Dream Dinette Table and Single Door Storage

S

Solid Surface Galley Top w/Sink Covers

S

Surf-X® Tops (Excluding Galley)

S

Feature Wall w/Accent Wall Covering

S

Galley Overhead Glass Inserts

S

Slideout Fascia - Hardwood Interior Wood Color Coordinating

S

Electric Fireplace (Living Area)

S

Interior Soft Touch Vinyl Ceiling

S

Vinyl Tile Flooring

S

Full Extension Drawer Guides w/Latches

S

Coordinating Window Treatments

S

Hidden Hinge Cabinet Doors

S

Manual Night Roller Shades

S

Energy Efficient LED 3" Flush Mount Ceiling Lighting

S

Washer/Dryer Prep - Combo

S

Washer/Dryer - Combo

O

Washer/Dryer - Stackable

O

Interior Entry

Entry Steps w/Pressed Tops

S

Master Battery Disconnect Switch

S

Metal Interior Grab Handle

S

Kitchen

Stainless Steel Residential Refrigerator

S

LP RV-Style Refrigerator

O

Cooktop - 3-Burner

S

Stainless Steel OTR Convection Microwave

S

Tile Backsplash

S

Sink - Stainless Steel, Single Bowl

S

Sink - Stainless Steel, Double Bowl

S

Sink - Stainless Steel, Farmhouse-Style

S

Residential Faucet w/Pullout Sprayer

S

Adjustable Shelving

S

Pantry Storage

S

Power Vent

S

Bedroom or Bunk Area

King Bed

S

Designer Bedspread and Pillows w/Shams

S

Headboard

S

120V/USB Receptacles

S

Reading Lights

S

C-PAP Machine Prep in Bedroom Overhead

S

Lavy

Stainless Steel Lavy Sinks

S

Residential Faucet(s)

S

Medicine Cabinet w/Mirror

S

ABS Shower Surround

S

Glass Shower Door

S

Shower Skylight

S

Power Vent(s)

S

Designer Shower Head Assembly

S

Porcelain Toilet w/Macerator

S

Entertainment

LED TV (Bedroom)

S

LED TV (Living Area)

S

Living Area Ceiling Speakers

S

Bluetooth® Coach System in Bedroom w/Exterior Speakers

S

Exterior Entertainment Center w/LED TV

S

Electric & Utilities

Multiplex Wiring System

S

Batteries: (4) 6V Deep Cycle House Batteries

S

Service Panel: 50 Amp, 120 Volt

S

Power Converter: 55 Amp

S

Inverter - Single 2000w

S

Generator - 5500W Onan® Quiet

S

Auto Gen Start

S

Transfer Switch w/Reverse Polarity Protection

S

A/C - Dual 13,500 BTU

S

Furnace - 34,000 BTU

S

CO and Smoke Detectors, Fire Extinguisher

S

Gravity Water Fill

S

Water Heater Bypass System

S

City Water Hookup

S

Exterior Shower

S

High Capacity Water Pump

S

Water Filtration System (Whole Coach)

S

Black Holding Tank San-T-Flush System

S

Cable TV/Satellite Hookup

S

Wi-Fi Ranger™ Sky4

S

Solar Panel - 100W

S

Chassis

Chassis Type

Ford® F-53 Motorhome Chassis

GVWR

26000

GCWR

30000

Rear Axle GAWR

17500

Front Axle GAWR

9000

Hitch Rating

8000

Tongue Rating

800

Front Suspension: Tapered Multi-Leaf

S

Rear Suspension: Tapered Multi-Leaf

S

4-Wheel Disc Brakes (Hydro Max) w/ABS

S

Tuned Sachs Shocks

S

Power Assisted Steering

S

Steering Damper (Front)

O

Liquid Springs®

O

Engine Equipment

Ford® 7.3L Triton V8, 350 HP w/468 lb. Torque

S

210 Amp Alternator

S

TorqShift® 6-Speed Automatic w/Overdrive and Tow/Haul Mode

S

Chassis Battery 78-amp

S

12V Heavy Duty Chassis Batteries

S

Tires and Wheels

Front and Rear Tires

255/80R 22.5G

Front and Rear Aluminum Wheels

S

Sizes

Wheelbase

252"

Exterior Length

38'-11"

Exterior Width

100"

Exterior Height

12'-10"

Interior Width

96"

Interior Height

82"

Interior Storage (cu.ft.)

148

Basement Storage (cu.ft.)

120

Awning Size

12'-0"

# of Slideouts

3

Capacities

Fuel (gal)

80

Fresh Water (gal)

100

Gray Waste Water (gal)

80

Black Waste Water (gal)

50

Appliance Propane (gal) (WC)

25

Tankless Water Heater

S

Construction

Powerlock System™ 2 - Interlocking Walls to Roof

S

Dryseal Edge Coating for all Ceilings, Walls and Floors

S

Vacu-Bond Aluminum Framed Constructed Roof and Sidewalls

S

Premium Color Gel High Gloss Exterior Fiberglass Skin w/Matching Cap(s)

S

Quiet Ducted A/C System

S

Pass Through Basement Storage

S

Rotocast Molded Durable, Easy to Clean Service Compartment

S

Heated Fresh Water and Holding Tank Compartments (w/Furnace Operational)

S

Steel Constructed Entry Step Box

S

Electric Slideout Systems

S

Painted Steel Frame Chassis Construction

S

Full Coverage Heavy Duty Undercoating

S

CSA Build

O

Exterior

Fiberglass Front Cap Assembly

S

Fiberglass Rear Cap Assembly

S

Partial Paint w/Vinyl Graphics

S

Full-Body Paint

O

ABS Wheel Well Trims

S

TPO Roof

S

Legged Electric Patio Awning w/LED lighting

S

Slideout Awning Toppers Above All Slideouts

S

Entry Door w/Radiused Upper, Deadbolt and Screen Door

S

Entry Grab Handle

S

Automatic Entrance Steps

S

Bottom/Side Swing Radiused, Color Matched Fiberglass Luggage Doors

S

Slam Latch Luggage Door Handles

S

Single Pane Frameless Windows

S

Dual Pane Frameless Windows

O

Patio Lighting

S

Automatic Hydraulic Leveling Jacks

S

Front, Side and Rear Clearance and Marker lighting

S

Enclosed Exterior Waste Station w/Discharge Valves

S

Trailer Hitch w/7-Way Round Tow Connection

S

Unidirectional HD On-Air Antenna

S

Rear Ladder

S

Roof Vent Rain Covers

O

Roof Mount Satellite Dish Prep

S

KING® Universal Satellite System

O

LP Connection

S

Cab Exterior

Automotive One-Piece Windshield

S

Driver and Passenger Slider Windows

S

Automotive Style Windshield Wiper System

S

Remote Power/Heated Mirrors w/Turn Signals and Side Cameras

S

Daytime Running Lights

S

Fog Lamps

S

Cab Interior

Black Instrument Gauges w/Electronic Information Center

S

Steering Wheel w/Tilt Column

S

Dash Air Conditioning and Heat

S

Electronic Cruise Control

S

Windshield Wipers w/Delay

S

Switch for Power/Heated Mirrors

S

Auxiliary Start Switch

S

Generator On/Off Switch

S

Color Backup Monitor

S

Sony® 9" Stereo w/AM/FM/Bluetooth®/ MP3/USB - Phone Control - Android Auto™ & Apple® Car Play® w/Navigation - Siri Eyes Free - Built in HD Radio - Sirius/XM® Ready (Requires Subscription) – Backup camera

S

Driver Chair w/Reclining Back, Swivel and Manual Controls

S

Passenger Chair w/Reclining Back, Swivel and Manual Controls

S

Seat Belts - 3 Point Driver and Passenger

S

12V and USB Accessory Ports

S

110V AC Outlet

S

Automotive Style Dash w/Dual Monitors and Workstation

S

Engine Cover w/Snack Tray

S

Driver and Passenger ABS Side Consoles

S

Driver and Passenger Center Table

S

Front Power Roller Shade

S

Driver and Passenger Side Manual Roller Shades

S

Map Lights

S

Automatic Leveling Jacks Touchpad Controls

S

Hide-A-Loft™ Power Drop-Down Overhead Bunk

S

Interior

Sofa - Jack-knife

S

Sofa - Theatre Seating

O

Facing Booth Dinette w/Dream Dinette Table and Single Door Storage

S

Solid Surface Galley Top w/Sink Covers

S

Surf-X® Tops (Excluding Galley)

S

Feature Wall w/Accent Wall Covering

S

Galley Overhead Glass Inserts

S

Slideout Fascia - Hardwood Interior Wood Color Coordinating

S

Interior Soft Touch Vinyl Ceiling

S

Vinyl Tile Flooring

S

Full Extension Drawer Guides w/Latches

S

Coordinating Window Treatments

S

Hidden Hinge Cabinet Doors

S

Manual Night Roller Shades

S

Energy Efficient LED 3" Flush Mount Ceiling Lighting

S

Washer/Dryer Prep - Combo

S

Washer/Dryer - Combo

O

Washer/Dryer - Stackable

O

Interior Entry

Entry Steps w/Pressed Tops

S

Master Battery Disconnect Switch

S

Metal Interior Grab Handle

S

Kitchen

Stainless Steel Residential Refrigerator

S

LP RV-Style Refrigerator

O

Cooktop - 3-Burner

S

Stainless Steel OTR Convection Microwave

S

Tile Backsplash

S

Sink - Stainless Steel, Single Bowl

S

Sink - Stainless Steel, Double Bowl

S

Sink - Stainless Steel, Farmhouse-Style

S

Residential Faucet w/Pullout Sprayer

S

Adjustable Shelving

S

Pantry Storage

S

Power Vent

S

Bedroom or Bunk Area

King Bed

S

Bunk Beds

S

Designer Bedspread and Pillows w/Shams

S

Headboard

S

120V/USB Receptacles

S

Reading Lights

S

C-PAP Machine Prep in Bedroom Overhead

S

Lavy

Stainless Steel Lavy Sinks

S

Residential Faucet(s)

S

Medicine Cabinet w/Mirror

S

ABS Shower Surround

S

Glass Shower Door

S

Shower Skylight

S

Power Vent(s)

S

Designer Shower Head Assembly

S

Porcelain Toilet w/Macerator

S

Porcelain Toilet

S

Entertainment

LED TV (Bedroom)

S

LED TV (Living Area)

S

Living Area Ceiling Speakers

S

Bluetooth® Coach System in Bedroom w/Exterior Speakers

S

Exterior Entertainment Center w/LED TV

S

Electric & Utilities

Multiplex Wiring System

S

Batteries: (4) 6V Deep Cycle House Batteries

S

Service Panel: 50 Amp, 120 Volt

S

Power Converter: 55 Amp

S

Inverter - Single 2000w

S

Generator - 5500W Onan® Quiet

S

Auto Gen Start

S

Transfer Switch w/Reverse Polarity Protection

S

A/C - Dual 13,500 BTU

S

Furnace - 20,000 BTU

S

Furnace - 30,000 BTU

S

Furnace - 34,000 BTU

S

CO and Smoke Detectors, Fire Extinguisher

S

Gravity Water Fill

S

Water Heater Bypass System

S

City Water Hookup

S

Exterior Shower

S

High Capacity Water Pump

S

Water Filtration System (Whole Coach)

S

Black Holding Tank San-T-Flush System

S

Cable TV/Satellite Hookup

S

Wi-Fi Ranger™ Sky4

S

Solar Panel - 100W

S

Go to Top
