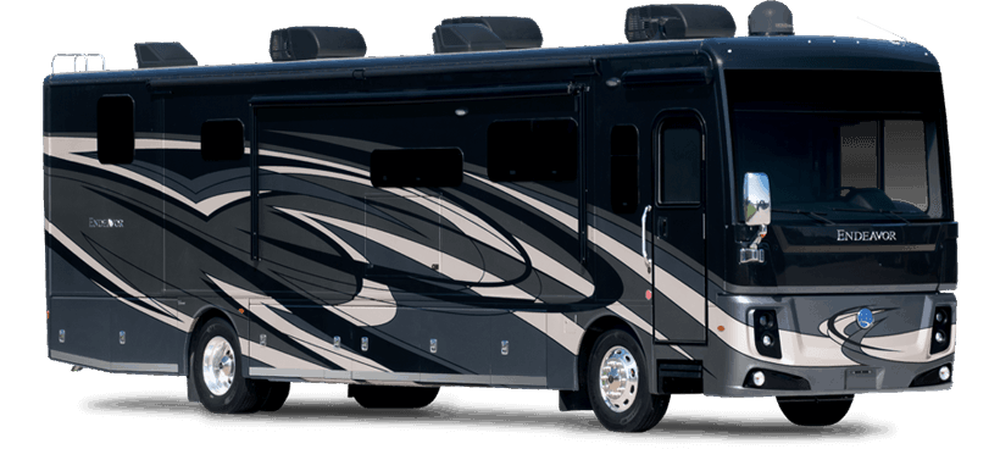

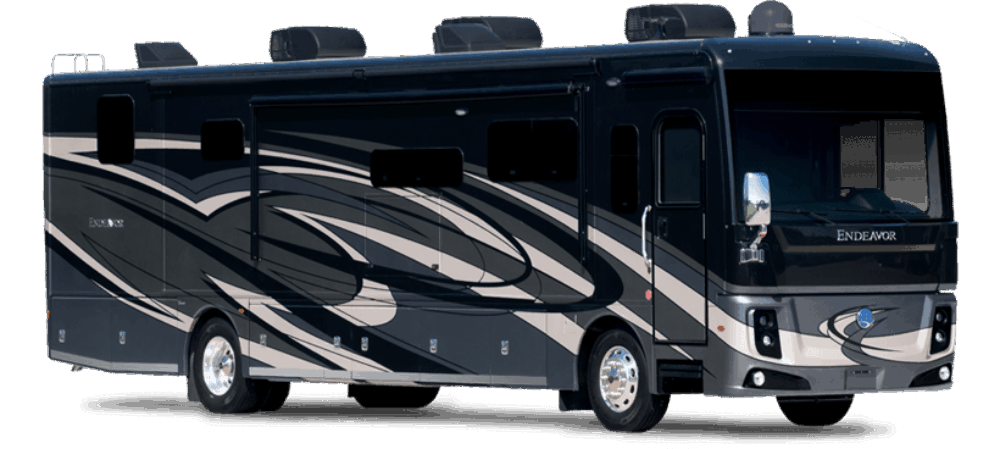

Endeavor

Elevate your exploration.
Whether you prefer camping or “glamping”—the 2020 Endeavor is a Class A diesel that lets you explore in style. The Endeavor includes new exteriors without slide-ram covers, an all-new service bay, side mirror blind spot detection and your choice of two décors and three cabinetry colors. The Endeavor is also one of the first Diesels in its class to provide RVers with Aqua-Hot® heating and front zone heat.
-
Chassis
Chassis:
FREIGHTLINER XCM
GVWR:
33400
GCWR:
43400
Rear Axle GAWR:
21000
Front Axle GAWR:
12400
Hitch Rating:
10000
Front Suspension: Neway Air Suspension:
S
Rear Suspension: V-Ride Air Suspension:
S
55 Degree Wheel Cut:
S
Front Brakes: 17" Air Disc Brakes w/ ABS:
S
Rear Brakes: 16.5 x 7" Drum Style S-Cam w/ ABS:
S
Tuned Sachs Shocks:
S
Power Assisted Steering:
S
Push Button Start (FCCC):
S
Auto Headlight (FCCC):
S
Electronic Dash (FCCC):
S
Engine Equipment
Cummins ISB Turbocharged 6.7L, 360 HP w/800 ft. lbs. Torque:
S
Allison 3000 MH 6-Speed Automatic transmission w/ Electronic Shift Control:
S
Alternator- Delco Remy 160 AMP:
S
Chassis Battery 72-amp:
S
(2) 6V Heavy Duty Chassis Batteries:
S
Tires and Wheels
Front Tires :
275/80R 22.5H
Rear Tires:
275/80R 22.5H
Front and Rear Aluminum Wheels:
S
Valve Stem Extensions:
S
Sizes
Wheelbase:
263
Exterior Length:
40'1"
Exterior Width:
102"
Exterior Height:
12'10"
Interior Height:
84"
Interior Width:
96"
Interior Storage (cu.ft.):
166
Basement Storage (cu.ft.):
142
Awning Size:
18'
# of Slideouts:
4
Capacities
Fuel (gal):
100
Fresh Water (gal):
105
Gray Waste Water (gal):
75
Black Waste Water (gal):
50
400 AquaHot®:
S
Construction
Aluminum Welded Interlocking Frames:
S
Powerlock System - Interlocking Floor, Walls and Roof:
S
Dryseal Edge Coating for all Walls and Floors:
S
Vacu-Bond Aluminum Framed Constructed Roof, Sidewalls and Floor:
S
Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):
S
R-8 Insulated Sidewalls;R-10 Insulated Roof and R-9 Insulated Floor:
S
Quiet Insulated, Ducted A/C System:
S
Full Pass Through Basement Storage w/Composite Floor and Wall Construction:
S
Heated Fresh Water and Holding Tank Compartments:
S
Freedom Bridge Chassis Construction:
-
Titan Bridge Chassis Construction:
S
Steel Constructed Entry Step Box:
S
Electric Main/Bedroom/Wardrobe/Kitchen Slide Out Systems:
S
Powder Coated Steel Frame Chassis Construction:
S
Full Coverage Heavy Duty Undercoating:
S
CSA Build:
O
Exterior
4-Color Premier Full Body Paint:
S
Fiberglass Wheel Well Trims:
S
TPO Roof - Thermoplastic Polyolefin :
S
Awning - Electric Patio Awning w/ LED lighting and Wind Sensor Retract:
S
Powered Entrance Awning w/LED Lighting:
S
Slide Out Awning Toppers above all Slideouts - Dometic:
S
Entrance Door - Radius Trimmed Door w/Black Interior and Black Screen Door, w/Rotary Latch, Deadbolt Lock and Window :
S
Acrylic Lighted Grab Handle at Entry Door:
S
Side Swing Aluminum Bus-Style Baggage Doors w/ Chrome Handles:
S
Side Swing Aluminum Bus-Style Baggage Doors w/ Chrome Handles:
S
LED Patio Lights (2) - (One at door, Second on doorside slide-out):
S
Porch Light w/Interior Switch:
S
Automatic Hydraulic Leveling Jacks:
S
Front, Side and Rear LED Clearance and Marker Lighting:
S
Exterior Service Station - Includes: Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup, Towel Holder & Drainage Valves, Water Heater Bypass Valve:
S
Full-coach Water Filtration System:
S
Exterior Park Cable and Satellite Hookup:
S
7-Way Round Tow Connection:
S
Rear Ladder - Brushed Aluminum Color:
S
Front & Rear Mudflaps:
S
Rear Under Hood Utility Light:
S
Antenna - Unidirectional King Controls Jack Antenna:
S
Basement Storage LED Lighting :
S
Heated Holding Tank Compartment:
S
Basement Pass-Through Storage:
S
King Universal Stationary Satellite:
S
Undercarriage LED Lights:
S
Full Bay Slide Trays - 1st Bay Single 90" :
S
Roof Vent Rain Covers :
S
48" Exterior Entertainment Center :
S
Luggage Trim Stainless Steel Trim:
S
3rd Roof A/C:
O
Satellite Delete:
O
Cab Exterior
:
One Piece Front Fiberglass Cap
Two Piece Front Fiberglass Cap:
S
One Piece Rear Cap:
S
One Piece Gen Access :
S
Automotive One Piece Windshield:
S
Daytime Running Lights:
S
Tinted Slider Driver/Passenger Windows:
S
Top Mount Automotive Style Windshield Wiper System
Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Chrome:
S
Lower Front Protective Mask:
S
Gen Slide :
S
Cab Interior
Dash Inserts - Diver Instrument Panels:
S
Black Instrument Gauges w/Electronic Information Center:
S
Push Button Start:
S
Evens High Output Dash Air Conditioning and Heat:
S
Air Suspension Deflation System:
S
Electronic Cruise Control:
S
Windshield Wipers with Delay:
S
Keyless Entry w/Remotes:
S
Switch for Power/Heated Chrome Mirrors:
S
Switch for Utility Service Compartment:
S
Driver Console w/Lower Storage Bin:
S
Power Locks w/ Key FOB control:
S
7" Backup Monitor Color:
S
Sirius/XM Satellite Radio Ready (Requires Subscription):
S
10.2" Magnadyne Radio Touch Screen w/AM/FM/CD/DVD/Bluetooth®/Navigation/APP Store/WiFi:
S
Driver Chair- Leather w/Reclining Back, Swivel and 6-way Power Controls:
S
Passenger Chair- Leather w/Reclining Back, Swivel 6-way Power Controls & Footrest:
S
Seat Belts - 3 Point Driver & Passenger w/ Adjustable Straps:
S
12V and USB Accessory Ports:
S
110-Volt AC Outlet at Dash and Passenger Area:
S
Automotive Style Wrap Around Dash:
S
Passenger Armrest w Solid Surface Top:
S
Front Power Roller Shades and Blinds:
S
Driver and Passenger Side Manual Roller Shades and Blinds:
S
Radio Switch Main/Auxiliary Power at Dash:
S
Additional Battery Disconnect Switch at Dash:
S
Momentary Battery Booster Switch - Connecting Chassis and House Batteries:
S
Map Lights:
S
Driver & Passenger Overhead Storage Cabinetry:
S
Air Horns:
S
Automatic Leveling Jacks with Touchpad Controls:
S
Hide-a-LoftTM Power Drop-Down Hide-Away Overhead Bunk with Mattress:
O
Interior
:
86" Sleeper Sofa
:
80" Loveseat w/Storage
:
60" Sleeper Sofa w/Twin Bed
:
67" Sleeper Sofa w/Full Bed
:
67" Sleeper Sofa w/Full Bed
:
80" Power Motion Lounger
:
60" Power Motion Lounger
:
64" Power Motion Lounger
:
Chair - Recliner Swivel Glide
:
Facing Dinette Booth
:
L-Shape Dinette
:
Freestanding Dinette w Credenza
:
U-Shape Dinette
Electric Fireplace :
S
Interior Flat Soft Touch Vinyl Ceiling:
S
Matte Finish Porcelain Tile Flooring Throughout
Floor Heat for Living Area :
S
Full Extension Drawer Guides Throughout w/Latches:
S
Hidden Hinge Throughout:
S
Hardwood Throughout:
S
Hardwood Ceiling Feature Trim w/Lighting :
S
Coordinating Valance w/Lambrequins:
S
Manual Day/Night Roller Shades Front/Driver/Pass - Black/Black:
S
Manual Day/Night Roller Shades Throughout - Color/Black :
S
Safe-T-View Camera System:
S
110V/USB Ports Throughout :
S
Energy Efficient LED 3" Puck Flush Mount Ceiling and Accent Wall Lighting :
S
Washer and Dryer :
S
Accent Rope Lighting (Tops, Ceiling Trim):
S
Interior Entry
Power Entry Step Cover:
S
Solid Surface Entry Step w/LED Accent Lighting:
S
Battery Disconnect @ Pass Cabinet:
S
Metal Interior Grab Handle at Entry:
S
Entry Door Manual Roller Shades and Blinds:
S
Lighted Stepwell:
S
Automatic Entrance Steps:
S
Kitchen
36-inch Wide Counter Depth Side-by-Side Refrigerator - 21 cu. ft. w/Exterior Ice & Water Dispenser :
S
2 Burner High Output Induction Electric Cooktop:
S
Stainless Steel Over the Range 1000W Convection Microwave :
S
Polished Solid Surface Galley Countertop w/Lighting:
S
Shadow Box Glass Tile Backsplash w/window & shade:
S
Stainless Steel Sink (Deeper):
S
Polished Solid Surface Sink Covers:
S
Residential Single Handle Faucet w/Pullout Sprayer :
S
Adjustable Shelves Throughout Kitchen:
S
Full Extension Drawer Guides w/ Latches:
S
Fantastic® Power Vent w/Wall Switch :
S
Waste Basket:
S
Pantry w/Hardwood Finished Fronts
Dishwasher :
O
Bedroom or Bunk Area
King Size Dream Easy Serenity Memory Foam Mattress w/Adjustable Head (Wolf®):
S
28" x 73" Bunk Beds with 5" Foam Mattress:
-
Designer Bedspread, Pillow Shams and Pillows:
S
Headboard:
S
Coordinating Fabric Window Treatments and Lambrequins:
S
Remote Generator Start Switch:
S
Surfex Bedroom Tops:
S
Hardwood Raised Panel Doors:
S
Hardwood Cabinet Wardrobe Doors w/Mirrors:
S
Cedar Lined Rear Wardrobe Closet:
S
Dual Rear Wardrobe w/Hinges Rods :
-
Full Rear Wardrobe w/Hinges Rod:
S
Bunk Beds w/ Barn Door Closure:
-
USB @Nightstands :
S
Individual Reading Lights Bedroom Overhead Cabinetry:
S
Bathroom
Polished Solid Surface Lavy Countertop:
S
Polished Solid Surface Lavy Shelf:
-
Feature Lighting at Lavy Top:
S
Tile Backsplash :
S
Gemstone Undermount Lav Sink:
S
Residential Chrome Double Handle Faucet :
S
Deluxe Hardwood Medicine Cabinet w/ Mirror:
S
Hardwood Raised Panel Doors:
S
Fiberglass Colored Shower Pan and Surround:
S
Glass Shower Door - Clear:
S
Shower Skylight:
S
Chrome Shower Head w/ On/Off, Sliding Adjustable Bar, Soap Dish and Matching Single Valve Faucet:
S
Porcelain Macerator Foot-flush Toilet w/Water Saver:
S
Porcelain Foot-flush Toilet w/Water Saver:
-
Fantastic® Power Vent w/Wall Switch :
S
Hardwood Window Treatment:
S
Manual Night Roller Shade - Black :
S
Accessories: Dual Towel Rings and Toilet Paper :
S
Entertainment
LG 32″ Flat Screen LED TV (Bedroom):
-
LG 43″ Flat Screen LED TV (Bedroom):
S
LG 43″ Flat Screen LED TV (Living Area):
-
LG 49″ Flat Screen LED TV (Living Area):
S
49" Pop-up TV (Living Area) :
-
JBL SoundBar w/Bluetooth® Sound System (Living Area)
Blu-Ray® Player w/Rremote:
S
LG 32" Flat Screen LED TV (Front Overhead):
S
Exterior Entertainment 48" TV JBL Soundbar w/Bluetooth® :
S
Two (2) LED TV/DVD Combo in Bunk Bed Area:
-
LG 43" Flat Screen LED TV (Living Area):
-
Electric & Utilities
:
Air Conditioner: (2) Roof Mount High Efficiency Ducted 15,000 BTU w/ Chill Grill and Rear has Heat Pump
AquaHot® 400 :
S
Firefly Multiplex Wiring:
S
Service: 50-amp, 120-volt Service Panel:
S
Converter: 60 AMP Power Converter - Precision Circuits:
S
Inverter: Single 2000W Pure Sine w/Remote - Magnum:
S
Energy Management System (EMS) w/Soft Start - Precision Circuits:
S
Neutral Loss Protection:
S
Generator: 8kW Onan Quiet Diesel:
S
Generator Auto Changeover:
S
Auto Gen Start:
S
Batteries: (4) 6V Deep Cycle House Batteries:
S
Water Pump: 12V 3GPM High Capacity Shurflo Water Pump:
S
Water Purification System (Whole Coach):
S
Black Water Tank Flush:
S
Gravity Water Fill DS/RS:
S
Cable TV/Satellite Hookup:
S
Toilet Tank San-T-Flush System:
S
Touch Sensor Tank Monitoring and Battery Readout:
S
CO & Smoke Detectors, Fire Extinguisher:
S
Exterior GFCI Receptacle in Exterior Storage:
S
Central Vacuum System:
S
Surge Guard Transfer Switch:
S
Power Cord Reel:
S
100W Solar Panel:
S
3rd Roof A/C:
O
Technology Package (Wifi Ranger, Cell Booster, 265W Solar Panel, Collision Avoidance):
S
:
-
Chassis
Chassis:
FREIGHTLINER XCM
GVWR:
33000
GCWR:
33000
Rear Axle GAWR:
21000
Front Axle GAWR:
12400
Hitch Rating:
10000
Front suspension: Neway Air Suspension:
S
Rear suspension: V-Ride Air Suspension:
S
55 Degree Wheel Cut:
S
Front Brakes: 17" Air Disc Brakes w/ ABS:
S
Rear Brakes: 16.5 x 7" Drum Style S-Cam w/ ABS:
S
Tuned Sachs Shocks:
S
Power assisted Steering:
S
Auto Headlight (FCCC):
S
Electronic dash (FCCC):
S
Engine Equipment
Cummins ISB Turbocharged 6.7L, 340 HP w/700 ft. lbs. Torque:
S
Allison 2500 MH 6-Speed Automatic transmission w/ Electronic Shift Control:
S
Alternator- Delco Remy 160 AMP:
S
Chassis Battery 72-amp:
S
(2) 6V Heavy Duty Chassis Batteries:
S
Tires and Wheels
Front Tires :
275/80R 22.5H
Rear Tires:
275/80R 22.5H
Front and Rear Aluminum Wheels:
S
Valve Stem Extensions:
S
Sizes
Wheelbase:
252
Exterior Length:
38'8"
Exterior Width:
102"
Exterior Height:
12'10"
Interior Height:
84"
Interior Width:
96"
Interior Storage (cu.ft.):
148
Basement Storage (cu.ft.):
127
Awning Size:
10'-8"
# of Slideouts:
3
Capacities
Fuel (gal):
100
Fresh Water (gal):
105
Gray Waste Water (gal):
75
Black Waste Water (gal):
50
Tankless Water Heater (Girard):
S
Construction
Aluminum Welded Interlocking Frames:
S
Powerlock System - Interlocking Floor, Walls and Roof:
S
Dryseal Edge Coating for all Walls and Floors:
S
Vacu-Bond Aluminum Framed Constructed Roof, Sidewalls and Floor:
S
Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):
S
R-8 Insulated Sidewalls;R-10 Insulated Roof and R-9 Insulated Floor:
S
Quiet Insulated, Ducted A/C System:
S
Full Pass Through Basement Storage w/Composite Floor and Wall Construction:
S
Heated Fresh Water and Holding Tank Compartments:
S
Freedom Bridge Chassis Construction:
-
Titan Bridge Chassis Construction:
S
Steel Constructed Entry Step Box:
S
Electric Main/Bedroom/Wardrobe/Kitchen Slide Out Systems:
S
Powder Coated Steel Frame Chassis Construction:
S
Full Coverage Heavy Duty Undercoating:
S
CSA Build:
O
Exterior
4-Color Premier Full Body Paint:
S
Fiberglass Wheel Well Trims:
S
TPO Roof - Thermoplastic Polyolefin :
S
Awning - Electric Patio Awning w/ LED lighting and Wind Sensor Retract:
S
Powered Entrance Awning w/LED Lighting:
S
Slide Out Awning Toppers Above all Slideouts - Dometic:
S
Entrance Door - Radius trimmed door w/Black Interior and Black Screen Door, w/Rotary Latch, Deadbolt Lock and Window :
S
Acrylic Lighted Grab Handle at Entry Door:
S
Side Swing Aluminum Bus-Style Baggage Doors w/ Chrome Handles:
S
Windows - Large Dark Tinted Frameless Windows Throughout:
S
LED Patio Lights - (One at door, Second on doorside slide-out):
S
Porch Light w/Interior Switch:
S
Automatic Hydraulic Leveling Jacks:
S
Front, Side and Rear LED Clearance and Marker lighting:
S
Exterior Service Station - Includes: Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup, Towel Holder & Drainage Valves, Water Heater Bypass Valve:
S
Full-coach Water Filtration System:
S
Exterior Park Cable and Satellite Hookup:
S
7-Way Round Tow Connection:
S
Rear Ladder - Brushed Aluminum Color:
S
Front & Rear Mudflaps:
S
Rear Under Hood Utility Light:
S
Antenna - Unidirectional King Controls Jack Antenna:
S
Basement Storage LED Lighting :
S
Heated Holding Tank Ccompartment:
S
Basement Pass-Through Storage:
S
King Universal Stationary Satellite:
S
Full Bay Slide Trays - 1st Bay Single 90" :
S
Roof Vent Rain Covers :
S
40" Exterior Entertainment Center :
S
3rd Roof A/C:
O
Satellite Delete:
O
Cab Exterior
Two Piece Front Fiberglass Cap:
S
One Piece Rear Cap:
S
One Piece Gen access :
S
Automotive One Piece Windshield:
S
Daytime Running Lights:
S
Tinted Slider Driver/Passenger Windows:
S
Automotive Style Windshield Wiper System:
S
Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Black:
-
Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Chrome:
S
Lower Front Protective Mask:
S
Cab Interior
Dash Inserts - Driver Instrument Panels:
S
Black Instrument Gauges w/Electronic Information Center:
S
Evens High Output Dash Air Conditioning and Heat:
S
Air Suspension Deflation System:
S
Electronic Cruise Control:
S
Windshield Wipers w/Delay:
S
Keyless Entry w/Remotes:
S
Switch for Power/Heated Chrome Mirrors:
S
Switch for Utility Service Compartment:
S
Driver Console w/Lower Storage Bin:
S
Power locks w/ Key FOB Control:
S
7" Backup Monitor Color:
S
Sirius/XM Satellite Radio Ready (Requires Subscription):
S
10.2" Magnadyne Radio Touch Screen w/AM/FM/CD/DVD/Bluetooth®/Navigation/APP Store/WiFi:
S
Driver Chair-Ultra Leather w/Reclining Back, Swivel and 6-way Power Controls:
S
Passenger Chair-Ultra Leather w/Reclining Back, Swivel 6-way Power Controls & Footrest:
S
Seat Belts - 3 Point Driver & Passenger w/ Adjustable Straps:
S
12V and USB Accessory Ports:
S
110-Volt AC Outlet at Dash and Passenger Area:
S
Automotive Style Wrap Around Dash:
S
Passenger Armrest w/ Solid Surface Top:
S
Front Power Roller Shades and Blinds:
S
Driver and Passenger Side Manual Roller Shades and Blinds:
S
Radio Switch Main/Auxiliary Power at Dash:
S
Additional Battery Disconnect Switch at Dash:
S
Momentary Battery Booster Switch - Connecting Chassis and House Batteries:
S
Map Lights:
S
Driver & Passenger Overhead Storage Cabinetry:
S
Air Horns:
S
Automatic Leveling Jacks with Touchpad Controls:
S
Hide-a-LoftTM Power Drop-Down Hide-Away Overhead Bunk with Mattress:
O
Interior
:
78" Sleeper Sofa w/Queen Bed
:
86" Sleeper Sofa w/Queen Bed
:
80" Loveseat w/Storage
:
60" Sleeper Sofa w/Twin Bed
:
80" Power Motion Lounger
:
60" Power Motion Lounger
:
78" Power Motion Lounger
Chair - Recliner Swivel Glide :
-
Facing Dinette Booth
:
L-Shape Dinette
:
Freestanding Dinette w/ Credenza
U-Shape Dinette :
S
Electric Fireplace :
S
Interior Flat Soft Touch Vinyl Ceiling:
S
Tile Flooring Throughout:
S
Floor Heat for Living Area :
S
Full Extension Drawer Guides Throughout w/Latches:
S
Hidden Hinge Throughout:
S
Hardwood Throughout:
S
Hardwood Ceiling Feature Trim w/Lighting :
S
Coordinating Valance w/ Lambrequins:
S
Manual Day/Night Roller Shades Front/Driver/Pass - Black/Black:
S
Manual Day/Night Roller Shades Throughout - Color/Black :
S
110V/USB Ports Throughout :
S
Energy Efficient LED 3" Puck Flush Mount Ceiling and Accent Wall Lighting :
S
Washer and Dryer :
S
Accent Rope Lighting (Tops, Living Slide-out Trims, Ceiling Trim):
S
Interior Entry
Power Entry Step Cover:
S
Solid Surface Entry Step w/ LED Accent Lighting:
S
Battery Disconnect @ Pass Cabinet:
S
Metal Interior Grab Handle at Entry:
S
Entry Door Manual Roller Shades and Blinds:
S
Lighted Stepwell:
S
Automatic Entrance Steps:
S
Kitchen
36-inch Wide Counter Depth Side-by-Side Refrigerator - 21 cu. ft. w/Exterior Ice & Water Dispenser :
S
2 Burner High Output Induction Electric Cooktop:
S
Stainless Steel Over the Range 1000W Convection Microwave :
S
Polished Solid Surface Galley Countertop w/Lighting:
S
Shadow Box Glass Tile Backsplash w/Window and Shade:
S
Stainless Steel Sink (Deeper):
S
Polished Solid Surface Sink Covers:
S
Residential Single Handle Faucet w/Pullout Sprayer :
S
Adjustable Shelves Throughout Kitchen:
S
Full Extension Drawer Guides w/Latches:
S
Fantastic® Power Vent w/Wall Switch :
S
Waste Basket:
S
Pantry w/Hardwood Finished Fronts
Dishwasher :
O
Bedroom or Bunk Area
King Size Dream Easy Serenity Memory Foam Mattress w/Adjustable Head (Wolf®):
S
28" x 73" Bunk Beds w/ 5" Foam Mattress:
-
Designer Bedspread, Pillow Shams and Pillows:
S
Headboard:
S
Coordinating Fabric Window Treatments and Lambrequins:
S
Remote Generator Start Switch:
S
Surf-x Bedroom Tops:
S
Hardwood Raised Panel Doors:
S
Hardwood Cabinet Wardrobe Doors w/Mirrors:
S
Cedar Lined Rear Wardrobe Closet:
S
Dual Rear Wardrobe w/Hinges Rods :
S
Full Rear Wardrobe w/Hinges Rod:
-
Bunk Bed w/Barn Door Closure:
-
USB at Nightstands :
S
Individual Reading Lights in Bedroom Overhead Cabinetry:
S
Bathroom
Polished Solid Surface Lavy Countertop:
S
Polished Solid Surface Lavy Shelf:
S
Tile Backsplash :
S
Gemstone Undermount Lavy Sink:
S
Residential Chrome Double Handle Faucet :
S
Deluxe Hardwood Medicine Cabinet w/Mirror:
S
Hardwood Raised Panel Doors:
S
Fiberglass Colored Shower Pan and Surround:
S
Glass Shower Door - Clear:
S
Shower Skylight:
S
Brush Nickel Shower Head w/ On/Off, Sliding Adjustable Bar, Soap Dish and Matching Single Valve Faucet:
S
Porcelain Macerator Foot-flush Toilet w/Water Saver:
S
Porcelain Foot-flush Toilet w/Water Saver:
S
Fantastic® Power Vent w/Wall Switch :
S
Hardwood Window Treatment:
S
Manual Night Roller Shade - Black :
S
Accessories: Dual Towel Rings/Toilet Paper Holder:
S
Entertainment
LG 32″ Flat Screen LED TV (Bedroom):
S
LG 43″ Flat Screen LED TV (Bedroom):
-
LG 43″ Flat Screen LED TV (Living Area):
S
LG 49″ Flat Screen LED TV (Living Area):
-
49" Pop-up TV (Living Area) :
-
JBL Soundbar TV Sound System (Living Area)
Blu-Ray® Player w/Remote:
S
LG 32" Flat Screen LED TV (Front Overhead):
S
Exterior Entertainment 40" TV Soundbar w/Bluetooth®:
S
Two (2) LED TV/DVD Combo in Bunk Bed Area:
-
Electric & Utilities
:
Air Conditioner: (2) Roof Mount High Efficiency Ducted 15,000 BTU w/Chill Grill and Rear has Heat Pump
25,000/25,000 BTU Furnace :
-
30,000/25,000 BTU Furnace :
S
Precision Circuits Multiplex Wiring:
S
Service: 50-amp, 120-volt Service Panel:
S
Converter: 60 AMP Power Converter - Precision Circuits:
S
Inverter: Single 2000W Pure Sine w/Remote - Magnum:
S
Energy Management System (EMS) w/Soft Start - Precision Circuits:
S
Neutral Loss Protection:
S
Generator: 8kW Onan Quiet Diesel:
S
Generator Auto Changeover:
S
Auto Gen Start:
S
Batteries: (4) 6V Deep Cycle House Batteries:
S
Water Pump: 12V 3GPM High Capacity Shurflo Water Pump:
S
Water Purification System (Whole Coach):
S
Black Water Tank Flush:
S
Gravity Water Fill (Driver Side/Passenger Side):
S
Cable TV/Satellite Hookup:
S
Toilet Tank San-T-Flush System:
S
Touch Sensor Tank Monitoring and Battery Readout:
S
CO & Smoke Detectors, Fire Extinguisher:
S
Exterior GFCI Receptacle in Exterior Storage:
S
Central Vacuum System:
S
Surge Guard Transfer Switch:
S
Power Cord Reel:
S
100W Solar Panel:
S
Technology Package (Wifi Ranger, Cell Booster, 265W Solar Panel, Collision Mitigation):
S
:
-
Chassis
Chassis:
FREIGHTLINER XCM
GVWR:
33000
GCWR:
33000
Rear Axle GAWR:
21000
Front Axle GAWR:
12400
Hitch Rating:
10000
Front suspension: Neway Air Suspension:
S
Rear suspension: V-Ride Air Suspension:
S
55 Degree Wheel Cut:
S
Front Brakes: 17" Air Disc Brakes w/ ABS:
S
Rear Brakes: 16.5 x 7" Drum Style S-Cam w/ ABS:
S
Tuned Sachs Shocks:
S
Power assisted Steering:
S
Auto Headlight (FCCC):
S
Electronic dash (FCCC):
S
Engine Equipment
Cummins ISB Turbocharged 6.7L, 340 HP w/700 ft. lbs. Torque:
S
Allison 2500 MH 6-Speed Automatic transmission w/ Electronic Shift Control:
S
Alternator- Delco Remy 160 AMP:
S
Chassis Battery 72-amp:
S
(2) 6V Heavy Duty Chassis Batteries:
S
Tires and Wheels
Front Tires :
275/80R 22.5H
Rear Tires:
275/80R 22.5H
Front and Rear Aluminum Wheels:
S
Valve Stem Extensions:
S
Sizes
Wheelbase:
252
Exterior Length:
38'8"
Exterior Width:
102"
Exterior Height:
12'10"
Interior Height:
84"
Interior Width:
96"
Interior Storage (cu.ft.):
152
Basement Storage (cu.ft.):
127
Awning Size:
18
# of Slideouts:
3
Capacities
Fuel (gal):
100
Fresh Water (gal):
105
Gray Waste Water (gal):
75
Black Waste Water (gal):
50
Tankless Water Heater (Girard):
S
Construction
Aluminum Welded Interlocking Frames:
S
Powerlock System - Interlocking Floor, Walls and Roof:
S
Dryseal Edge Coating for all Walls and Floors:
S
Vacu-Bond Aluminum Framed Constructed Roof, Sidewalls and Floor:
S
Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):
S
R-8 Insulated Sidewalls;R-10 Insulated Roof and R-9 Insulated Floor:
S
Quiet Insulated, Ducted A/C System:
S
Full Pass Through Basement Storage w/Composite Floor and Wall Construction:
S
Heated Fresh Water and Holding Tank Compartments:
S
Freedom Bridge Chassis Construction:
-
Titan Bridge Chassis Construction:
S
Steel Constructed Entry Step Box:
S
Electric Main/Bedroom/Wardrobe/Kitchen Slide Out Systems:
S
Powder Coated Steel Frame Chassis Construction:
S
Full Coverage Heavy Duty Undercoating:
S
CSA Build:
O
Exterior
4-Color Premier Full Body Paint:
S
Fiberglass Wheel Well Trims:
S
TPO Roof - Thermoplastic Polyolefin :
S
Awning - Electric Patio Awning w/ LED lighting and Wind Sensor Retract:
S
Powered Entrance Awning w/LED Lighting:
S
Slide Out Awning Toppers Above all Slideouts - Dometic:
S
Entrance Door - Radius trimmed door w/Black Interior and Black Screen Door, w/Rotary Latch, Deadbolt Lock and Window :
S
Acrylic Lighted Grab Handle at Entry Door:
S
Side Swing Aluminum Bus-Style Baggage Doors w/ Chrome Handles:
S
Windows - Large Dark Tinted Frameless Windows Throughout:
S
LED Patio Lights - (One at door, Second on doorside slide-out):
S
Porch Light w/Interior Switch:
S
Automatic Hydraulic Leveling Jacks:
S
Front, Side and Rear LED Clearance and Marker lighting:
S
Exterior Service Station - Includes: Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup, Towel Holder & Drainage Valves, Water Heater Bypass Valve:
S
Full-coach Water Filtration System:
S
Exterior Park Cable and Satellite Hookup:
S
7-Way Round Tow Connection:
S
Rear Ladder - Brushed Aluminum Color:
S
Front & Rear Mudflaps:
S
Rear Under Hood Utility Light:
S
Antenna - Unidirectional King Controls Jack Antenna:
S
Basement Storage LED Lighting :
S
Heated Holding Tank Ccompartment:
S
Basement Pass-Through Storage:
S
King Universal Stationary Satellite:
S
Full Bay Slide Trays - 1st Bay Single 90" :
S
Roof Vent Rain Covers :
S
40" Exterior Entertainment Center :
S
3rd Roof A/C:
O
Satellite Delete:
O
Cab Exterior
Two Piece Front Fiberglass Cap:
S
One Piece Rear Cap:
S
One Piece Gen access :
S
Automotive One Piece Windshield:
S
Daytime Running Lights:
S
Tinted Slider Driver/Passenger Windows:
S
Automotive Style Windshield Wiper System:
S
Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Black:
-
Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Chrome:
S
Lower Front Protective Mask:
S
Cab Interior
Dash Inserts - Driver Instrument Panels:
S
Black Instrument Gauges w/Electronic Information Center:
S
Evens High Output Dash Air Conditioning and Heat:
S
Air Suspension Deflation System:
S
Electronic Cruise Control:
S
Windshield Wipers w/Delay:
S
Keyless Entry w/Remotes:
S
Switch for Power/Heated Chrome Mirrors:
S
Switch for Utility Service Compartment:
S
Driver Console w/Lower Storage Bin:
S
Power locks w/ Key FOB Control:
S
7" Backup Monitor Color:
S
Sirius/XM Satellite Radio Ready (Requires Subscription):
S
10.2" Magnadyne Radio Touch Screen w/AM/FM/CD/DVD/Bluetooth®/Navigation/APP Store/WiFi:
S
Driver Chair-Ultra Leather w/Reclining Back, Swivel and 6-way Power Controls:
S
Passenger Chair-Ultra Leather w/Reclining Back, Swivel 6-way Power Controls & Footrest:
S
Seat Belts - 3 Point Driver & Passenger w/ Adjustable Straps:
S
12V and USB Accessory Ports:
S
110-Volt AC Outlet at Dash and Passenger Area:
S
Automotive Style Wrap Around Dash:
S
Passenger Armrest w/ Solid Surface Top:
S
Front Power Roller Shades and Blinds:
S
Driver and Passenger Side Manual Roller Shades and Blinds:
S
Radio Switch Main/Auxiliary Power at Dash:
S
Additional Battery Disconnect Switch at Dash:
S
Momentary Battery Booster Switch - Connecting Chassis and House Batteries:
S
Map Lights:
S
Driver & Passenger Overhead Storage Cabinetry:
S
Air Horns:
S
Automatic Leveling Jacks with Touchpad Controls:
S
Hide-a-LoftTM Power Drop-Down Hide-Away Overhead Bunk with Mattress:
O
Interior
:
78" Sleeper Sofa w/Queen Bed
:
86" Sleeper Sofa w/Queen Bed
:
80" Loveseat w/Storage
:
60" Sleeper Sofa w/Twin Bed
:
80" Power Motion Lounger
:
60" Power Motion Lounger
:
78" Power Motion Lounger
Chair - Recliner Swivel Glide :
-
Facing Dinette Booth
:
L-Shape Dinette
:
Freestanding Dinette w/ Credenza
U-Shape Dinette :
-
Electric Fireplace :
S
Interior Flat Soft Touch Vinyl Ceiling:
S
Tile Flooring Throughout:
S
Floor Heat for Living Area :
S
Full Extension Drawer Guides Throughout w/Latches:
S
Hidden Hinge Throughout:
S
Hardwood Throughout:
S
Hardwood Ceiling Feature Trim w/Lighting :
S
Coordinating Valance w/ Lambrequins:
S
Manual Day/Night Roller Shades Front/Driver/Pass - Black/Black:
S
Manual Day/Night Roller Shades Throughout - Color/Black :
S
110V/USB Ports Throughout :
S
Energy Efficient LED 3" Puck Flush Mount Ceiling and Accent Wall Lighting :
S
Washer and Dryer :
S
Accent Rope Lighting (Tops, Living Slide-out Trims, Ceiling Trim):
S
Interior Entry
Power Entry Step Cover:
S
Solid Surface Entry Step w/ LED Accent Lighting:
S
Battery Disconnect @ Pass Cabinet:
S
Metal Interior Grab Handle at Entry:
S
Entry Door Manual Roller Shades and Blinds:
S
Lighted Stepwell:
S
Automatic Entrance Steps:
S
Kitchen
36-inch Wide Counter Depth Side-by-Side Refrigerator - 21 cu. ft. w/Exterior Ice & Water Dispenser :
S
2 Burner High Output Induction Electric Cooktop:
S
Stainless Steel Over the Range 1000W Convection Microwave :
S
Polished Solid Surface Galley Countertop w/Lighting:
S
Shadow Box Glass Tile Backsplash w/Window and Shade:
S
Stainless Steel Sink (Deeper):
S
Polished Solid Surface Sink Covers:
S
Residential Single Handle Faucet w/Pullout Sprayer :
S
Adjustable Shelves Throughout Kitchen:
S
Full Extension Drawer Guides w/Latches:
S
Fantastic® Power Vent w/Wall Switch :
S
Waste Basket:
S
Pantry w/Hardwood Finished Fronts
Dishwasher :
O
Bedroom or Bunk Area
King Size Dream Easy Serenity Memory Foam Mattress w/Adjustable Head (Wolf®):
S
28" x 73" Bunk Beds w/ 5" Foam Mattress:
S
Designer Bedspread, Pillow Shams and Pillows:
S
Headboard:
S
Coordinating Fabric Window Treatments and Lambrequins:
S
Remote Generator Start Switch:
S
Surf-x Bedroom Tops:
S
Hardwood Raised Panel Doors:
S
Hardwood Cabinet Wardrobe Doors w/Mirrors:
S
Cedar Lined Rear Wardrobe Closet:
S
Dual Rear Wardrobe w/Hinges Rods :
S
Full Rear Wardrobe w/Hinges Rod:
-
Bunk Bed w/Barn Door Closure:
S
USB at Nightstands :
S
Individual Reading Lights in Bedroom Overhead Cabinetry:
S
Bathroom
Polished Solid Surface Lavy Countertop:
S
Polished Solid Surface Lavy Shelf:
S
Tile Backsplash :
S
Gemstone Undermount Lavy Sink:
S
Residential Chrome Double Handle Faucet :
S
Deluxe Hardwood Medicine Cabinet w/Mirror:
S
Hardwood Raised Panel Doors:
S
Fiberglass Colored Shower Pan and Surround:
S
Glass Shower Door - Clear:
S
Shower Skylight:
S
Brush Nickel Shower Head w/ On/Off, Sliding Adjustable Bar, Soap Dish and Matching Single Valve Faucet:
S
Porcelain Macerator Foot-flush Toilet w/Water Saver:
S
Porcelain Foot-flush Toilet w/Water Saver:
S
Fantastic® Power Vent w/Wall Switch :
S
Hardwood Window Treatment:
S
Manual Night Roller Shade - Black :
S
Accessories: Dual Towel Rings/Toilet Paper Holder:
S
Entertainment
LG 32″ Flat Screen LED TV (Bedroom):
S
LG 43″ Flat Screen LED TV (Bedroom):
-
LG 43″ Flat Screen LED TV (Living Area):
S
LG 49″ Flat Screen LED TV (Living Area):
-
49" Pop-up TV (Living Area) :
-
JBL Soundbar TV Sound System (Living Area)
Blu-Ray® Player w/Remote:
S
LG 32" Flat Screen LED TV (Front Overhead):
S
Exterior Entertainment 40" TV Soundbar w/Bluetooth®:
S
Two (2) LED TV/DVD Combo in Bunk Bed Area:
S
Electric & Utilities
:
Air Conditioner: (2) Roof Mount High Efficiency Ducted 15,000 BTU w/Chill Grill and Rear has Heat Pump
25,000/25,000 BTU Furnace :
-
30,000/25,000 BTU Furnace :
S
Precision Circuits Multiplex Wiring:
S
Service: 50-amp, 120-volt Service Panel:
S
Converter: 60 AMP Power Converter - Precision Circuits:
S
Inverter: Single 2000W Pure Sine w/Remote - Magnum:
S
Energy Management System (EMS) w/Soft Start - Precision Circuits:
S
Neutral Loss Protection:
S
Generator: 8kW Onan Quiet Diesel:
S
Generator Auto Changeover:
S
Auto Gen Start:
S
Batteries: (4) 6V Deep Cycle House Batteries:
S
Water Pump: 12V 3GPM High Capacity Shurflo Water Pump:
S
Water Purification System (Whole Coach):
S
Black Water Tank Flush:
S
Gravity Water Fill (Driver Side/Passenger Side):
S
Cable TV/Satellite Hookup:
S
Toilet Tank San-T-Flush System:
S
Touch Sensor Tank Monitoring and Battery Readout:
S
CO & Smoke Detectors, Fire Extinguisher:
S
Exterior GFCI Receptacle in Exterior Storage:
S
Central Vacuum System:
S
Surge Guard Transfer Switch:
S
Power Cord Reel:
S
100W Solar Panel:
S
Technology Package (Wifi Ranger, Cell Booster, 265W Solar Panel, Collision Mitigation):
S
:
-
Chassis
Chassis:
FREIGHTLINER XCM
GVWR:
33400
GCWR:
43400
Rear Axle GAWR:
21000
Front Axle GAWR:
12400
Hitch Rating:
10000
Front Suspension: Neway Air Suspension:
S
Rear Suspension: V-Ride Air Suspension:
S
55 Degree Wheel Cut:
S
Front Brakes: 17" Air Disc Brakes w/ ABS:
S
Rear Brakes: 16.5 x 7" Drum Style S-Cam w/ ABS:
S
Tuned Sachs Shocks:
S
Power Assisted Steering:
S
Push Button Start (FCCC):
S
Auto Headlight (FCCC):
S
Electronic Dash (FCCC):
S
Engine Equipment
Cummins ISB Turbocharged 6.7L, 360 HP w/800 ft. lbs. Torque:
S
Allison 3000 MH 6-Speed Automatic transmission w/ Electronic Shift Control:
S
Alternator- Delco Remy 160 AMP:
S
Chassis Battery 72-amp:
S
(2) 6V Heavy Duty Chassis Batteries:
S
Tires and Wheels
Front Tires :
275/80R 22.5H
Rear Tires:
275/80R 22.5H
Front and Rear Aluminum Wheels:
S
Valve Stem Extensions:
S
Sizes
Wheelbase:
263
Exterior Length:
40'1"
Exterior Width:
102"
Exterior Height:
12'10"
Interior Height:
84"
Interior Width:
96"
Interior Storage (cu.ft.):
132
Basement Storage (cu.ft.):
142
Awning Size:
18'
# of Slideouts:
3
Capacities
Fuel (gal):
100
Fresh Water (gal):
105
Gray Waste Water (gal):
75
Black Waste Water (gal):
50
400 AquaHot®:
S
Construction
Aluminum Welded Interlocking Frames:
S
Powerlock System - Interlocking Floor, Walls and Roof:
S
Dryseal Edge Coating for all Walls and Floors:
S
Vacu-Bond Aluminum Framed Constructed Roof, Sidewalls and Floor:
S
Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):
S
R-8 Insulated Sidewalls;R-10 Insulated Roof and R-9 Insulated Floor:
S
Quiet Insulated, Ducted A/C System:
S
Full Pass Through Basement Storage w/Composite Floor and Wall Construction:
S
Heated Fresh Water and Holding Tank Compartments:
S
Freedom Bridge Chassis Construction:
-
Titan Bridge Chassis Construction:
S
Steel Constructed Entry Step Box:
S
Electric Main/Bedroom/Wardrobe/Kitchen Slide Out Systems:
S
Powder Coated Steel Frame Chassis Construction:
S
Full Coverage Heavy Duty Undercoating:
S
CSA Build:
O
Exterior
4-Color Premier Full Body Paint:
S
Fiberglass Wheel Well Trims:
S
TPO Roof - Thermoplastic Polyolefin :
S
Awning - Electric Patio Awning w/ LED lighting and Wind Sensor Retract:
S
Powered Entrance Awning w/LED Lighting:
S
Slide Out Awning Toppers above all Slideouts - Dometic:
S
Entrance Door - Radius Trimmed Door w/Black Interior and Black Screen Door, w/Rotary Latch, Deadbolt Lock and Window :
S
Acrylic Lighted Grab Handle at Entry Door:
S
Side Swing Aluminum Bus-Style Baggage Doors w/ Chrome Handles:
S
Side Swing Aluminum Bus-Style Baggage Doors w/ Chrome Handles:
S
LED Patio Lights (2) - (One at door, Second on doorside slide-out):
S
Porch Light w/Interior Switch:
S
Automatic Hydraulic Leveling Jacks:
S
Front, Side and Rear LED Clearance and Marker Lighting:
S
Exterior Service Station - Includes: Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup, Towel Holder & Drainage Valves, Water Heater Bypass Valve:
S
Full-coach Water Filtration System:
S
Exterior Park Cable and Satellite Hookup:
S
7-Way Round Tow Connection:
S
Rear Ladder - Brushed Aluminum Color:
S
Front & Rear Mudflaps:
S
Rear Under Hood Utility Light:
S
Antenna - Unidirectional King Controls Jack Antenna:
S
Basement Storage LED Lighting :
S
Heated Holding Tank Compartment:
S
Basement Pass-Through Storage:
S
King Universal Stationary Satellite:
S
Undercarriage LED Lights:
S
Full Bay Slide Trays - 1st Bay Single 90" :
S
Roof Vent Rain Covers :
S
48" Exterior Entertainment Center :
S
Luggage Trim Stainless Steel Trim:
S
3rd Roof A/C:
O
Satellite Delete:
O
Cab Exterior
:
One Piece Front Fiberglass Cap
Two Piece Front Fiberglass Cap:
S
One Piece Rear Cap:
S
One Piece Gen Access :
S
Automotive One Piece Windshield:
S
Daytime Running Lights:
S
Tinted Slider Driver/Passenger Windows:
S
Top Mount Automotive Style Windshield Wiper System
Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Chrome:
S
Lower Front Protective Mask:
S
Gen Slide :
S
Cab Interior
Dash Inserts - Diver Instrument Panels:
S
Black Instrument Gauges w/Electronic Information Center:
S
Push Button Start:
S
Evens High Output Dash Air Conditioning and Heat:
S
Air Suspension Deflation System:
S
Electronic Cruise Control:
S
Windshield Wipers with Delay:
S
Keyless Entry w/Remotes:
S
Switch for Power/Heated Chrome Mirrors:
S
Switch for Utility Service Compartment:
S
Driver Console w/Lower Storage Bin:
S
Power Locks w/ Key FOB control:
S
7" Backup Monitor Color:
S
Sirius/XM Satellite Radio Ready (Requires Subscription):
S
10.2" Magnadyne Radio Touch Screen w/AM/FM/CD/DVD/Bluetooth®/Navigation/APP Store/WiFi:
S
Driver Chair- Leather w/Reclining Back, Swivel and 6-way Power Controls:
S
Passenger Chair- Leather w/Reclining Back, Swivel 6-way Power Controls & Footrest:
S
Seat Belts - 3 Point Driver & Passenger w/ Adjustable Straps:
S
12V and USB Accessory Ports:
S
110-Volt AC Outlet at Dash and Passenger Area:
S
Automotive Style Wrap Around Dash:
S
Passenger Armrest w Solid Surface Top:
S
Front Power Roller Shades and Blinds:
S
Driver and Passenger Side Manual Roller Shades and Blinds:
S
Radio Switch Main/Auxiliary Power at Dash:
S
Additional Battery Disconnect Switch at Dash:
S
Momentary Battery Booster Switch - Connecting Chassis and House Batteries:
S
Map Lights:
S
Driver & Passenger Overhead Storage Cabinetry:
S
Air Horns:
S
Automatic Leveling Jacks with Touchpad Controls:
S
Hide-a-LoftTM Power Drop-Down Hide-Away Overhead Bunk with Mattress:
O
Interior
:
86" Sleeper Sofa
:
80" Loveseat w/Storage
:
60" Sleeper Sofa w/Twin Bed
:
67" Sleeper Sofa w/Full Bed
:
67" Sleeper Sofa w/Full Bed
:
80" Power Motion Lounger
:
60" Power Motion Lounger
:
64" Power Motion Lounger
:
Chair - Recliner Swivel Glide
:
Facing Dinette Booth
:
L-Shape Dinette
:
Freestanding Dinette w Credenza
:
U-Shape Dinette
Electric Fireplace :
S
Interior Flat Soft Touch Vinyl Ceiling:
S
Matte Finish Porcelain Tile Flooring Throughout
Floor Heat for Living Area :
S
Full Extension Drawer Guides Throughout w/Latches:
S
Hidden Hinge Throughout:
S
Hardwood Throughout:
S
Hardwood Ceiling Feature Trim w/Lighting :
S
Coordinating Valance w/Lambrequins:
S
Manual Day/Night Roller Shades Front/Driver/Pass - Black/Black:
S
Manual Day/Night Roller Shades Throughout - Color/Black :
S
Safe-T-View Camera System:
S
110V/USB Ports Throughout :
S
Energy Efficient LED 3" Puck Flush Mount Ceiling and Accent Wall Lighting :
S
Washer and Dryer :
S
Accent Rope Lighting (Tops, Ceiling Trim):
S
Interior Entry
Power Entry Step Cover:
S
Solid Surface Entry Step w/LED Accent Lighting:
S
Battery Disconnect @ Pass Cabinet:
S
Metal Interior Grab Handle at Entry:
S
Entry Door Manual Roller Shades and Blinds:
S
Lighted Stepwell:
S
Automatic Entrance Steps:
S
Kitchen
36-inch Wide Counter Depth Side-by-Side Refrigerator - 21 cu. ft. w/Exterior Ice & Water Dispenser :
S
2 Burner High Output Induction Electric Cooktop:
S
Stainless Steel Over the Range 1000W Convection Microwave :
S
Polished Solid Surface Galley Countertop w/Lighting:
S
Shadow Box Glass Tile Backsplash w/window & shade:
S
Stainless Steel Sink (Deeper):
S
Polished Solid Surface Sink Covers:
S
Residential Single Handle Faucet w/Pullout Sprayer :
S
Adjustable Shelves Throughout Kitchen:
S
Full Extension Drawer Guides w/ Latches:
S
Fantastic® Power Vent w/Wall Switch :
S
Waste Basket:
S
Pantry w/Hardwood Finished Fronts
Dishwasher :
O
Bedroom or Bunk Area
King Size Dream Easy Serenity Memory Foam Mattress w/Adjustable Head (Wolf®):
S
28" x 73" Bunk Beds with 5" Foam Mattress:
-
Designer Bedspread, Pillow Shams and Pillows:
S
Headboard:
S
Coordinating Fabric Window Treatments and Lambrequins:
S
Remote Generator Start Switch:
S
Surfex Bedroom Tops:
S
Hardwood Raised Panel Doors:
S
Hardwood Cabinet Wardrobe Doors w/Mirrors:
S
Cedar Lined Rear Wardrobe Closet:
S
Dual Rear Wardrobe w/Hinges Rods :
S
Full Rear Wardrobe w/Hinges Rod:
-
Bunk Beds w/ Barn Door Closure:
-
USB @Nightstands :
S
Individual Reading Lights Bedroom Overhead Cabinetry:
S
Bathroom
Polished Solid Surface Lavy Countertop:
S
Polished Solid Surface Lavy Shelf:
-
Feature Lighting at Lavy Top:
S
Tile Backsplash :
S
Gemstone Undermount Lav Sink:
S
Residential Chrome Double Handle Faucet :
S
Deluxe Hardwood Medicine Cabinet w/ Mirror:
S
Hardwood Raised Panel Doors:
S
Fiberglass Colored Shower Pan and Surround:
S
Glass Shower Door - Clear:
S
Shower Skylight:
S
Chrome Shower Head w/ On/Off, Sliding Adjustable Bar, Soap Dish and Matching Single Valve Faucet:
S
Porcelain Macerator Foot-flush Toilet w/Water Saver:
S
Porcelain Foot-flush Toilet w/Water Saver:
-
Fantastic® Power Vent w/Wall Switch :
S
Hardwood Window Treatment:
S
Manual Night Roller Shade - Black :
S
Accessories: Dual Towel Rings and Toilet Paper :
S
Entertainment
LG 32″ Flat Screen LED TV (Bedroom):
S
LG 43″ Flat Screen LED TV (Bedroom):
-
LG 43″ Flat Screen LED TV (Living Area):
-
LG 49″ Flat Screen LED TV (Living Area):
-
49" Pop-up TV (Living Area) :
S
JBL SoundBar w/Bluetooth® Sound System (Living Area)
Blu-Ray® Player w/Rremote:
S
LG 32" Flat Screen LED TV (Front Overhead):
S
Exterior Entertainment 48" TV JBL Soundbar w/Bluetooth® :
S
Two (2) LED TV/DVD Combo in Bunk Bed Area:
-
LG 43" Flat Screen LED TV (Living Area):
O
Electric & Utilities
:
Air Conditioner: (2) Roof Mount High Efficiency Ducted 15,000 BTU w/ Chill Grill and Rear has Heat Pump
AquaHot® 400 :
S
Firefly Multiplex Wiring:
S
Service: 50-amp, 120-volt Service Panel:
S
Converter: 60 AMP Power Converter - Precision Circuits:
S
Inverter: Single 2000W Pure Sine w/Remote - Magnum:
S
Energy Management System (EMS) w/Soft Start - Precision Circuits:
S
Neutral Loss Protection:
S
Generator: 8kW Onan Quiet Diesel:
S
Generator Auto Changeover:
S
Auto Gen Start:
S
Batteries: (4) 6V Deep Cycle House Batteries:
S
Water Pump: 12V 3GPM High Capacity Shurflo Water Pump:
S
Water Purification System (Whole Coach):
S
Black Water Tank Flush:
S
Gravity Water Fill DS/RS:
S
Cable TV/Satellite Hookup:
S
Toilet Tank San-T-Flush System:
S
Touch Sensor Tank Monitoring and Battery Readout:
S
CO & Smoke Detectors, Fire Extinguisher:
S
Exterior GFCI Receptacle in Exterior Storage:
S
Central Vacuum System:
S
Surge Guard Transfer Switch:
S
Power Cord Reel:
S
100W Solar Panel:
S
3rd Roof A/C:
O
Technology Package (Wifi Ranger, Cell Booster, 265W Solar Panel, Collision Avoidance):
S
:
