Class A · Diesel
2022 Nautica
Hit the road in style
Travel isn’t just an activity for you. It’s a passion. A lifestyle. And the 2022 Holiday Rambler Nautica puts emphasis on the “style” part. Following in the award-winning footsteps of last year’s model, this year’s Nautica combines a smooth, stable ride with extremely Instagrammable interior design decisions, once again raising the bar for living your best life on the road.
Why choose the 2022 Nautica?
- It’s smooth sailing thanks to Freightliner custom raised rail chassis.
- A safer, more stable driving experience with the DriveTech / Optiview™ display and control system.
- Stock up for long road trips with a 18.7 cu. ft. residential refrigerator.
- Plug in! This coach is all electric!
- Fall asleep to the sound of waves crashing in a massive king bed.
- Breathtaking design details like the glass tile galley backsplash or the stainless steel farmhouse sink.
Chassis
Chassis
FREIGHTLINER XCR
GVWR
32400
GCWR
33000
Rear Axle GAWR
20000
Front Axle GAWR
12400
Hitch Rating
10000
Front Suspension: Neway Air Suspension
S
Rear Suspension: V-Ride™ Air Suspension
S
55 Degree Wheel Cut
S
Front Brakes: Meritor Air Drum Brakes w/ABS
S
Rear Brakes: Meritor Air Drum Brakes w/ABS
S
Tuned Sachs Shocks
S
Power Assisted Steering
S
LED OptiView™ Instrument Panel (FCCC)
S
BrakeSync (FCCC)
S
Engine Equipment
Cummins® ISB Turbocharged 6.7L, 340 HP w/700 ft. lbs. Torque
S
Allison® 2500 MH 6-Speed Automatic Transmission w/ Electronic Shift Control
S
160 Amp Alternator
S
(2) 12V Heavy Duty Chassis Batteries
S
Tires and Wheels
Front and Rear Tires
275/80R 22.5H
Front and Rear Aluminum Wheels
S
Valve Stem Extensions
S
Sizes
Wheelbase
206
Exterior Length
35'-4"
Exterior Width
102"
Exterior Height
12'10"
Interior Width
96"
Interior Height
84"
Interior Storage (cu.ft.)
140
Basement Storage (cu.ft.)
135
1st Awning Size
18'
Entry Door Awning
4'
# of Slideouts
3
Capacities
Fuel (gal)
100
Fresh Water (gal)
96
Gray Waste Water (gal)
65
Black Waste Water (gal)
45
Def Tank (gal)
13
250 Aqua-Hot® Diesel
S
Construction
Powerlock System 2 - Interlocking Walls to Roof
S
Dryseal Edge Coating for all Ceilings, Walls and Floors
S
Vacu-Bond™ Aluminum Framed Constructed Sidewalls, Roof and Floors
S
Premium Gel Exterior Vetrosina Fiberglass Skin (No Wood Substrate)
S
High Density Polystyrene Insulated Sidewalls, Roof and Floor
S
Quiet Insulated, Ducted A/C System
S
Full Pass Through Basement Storage w/Composite Floor Construction
S
Heated Fresh Water and Holding Tank Compartments (w/Furnace Operational)
S
Delta Foundation®
S
Steel Constructed Entry Step Box
S
Electric Slideout Systems
S
Painted Steel Frame Chassis Construction
S
Full Coverage Heavy Duty Undercoating
S
CSA Build
O
Exterior
Fiberglass Front Cap Assembly
S
Fiberglass Rear Cap Assembly
S
4-Color Premier Full Body Paint
S
ABS Wheel Well Trims
S
TPO Roof
S
Electric Patio Awning w/LED Lighting and Motion Sensor Retract
S
Powered Entrance Awning w/LED Lighting
S
Slideout Awning Toppers Above All Slideouts
S
Entry Door w/Radiused Upper, Deadbolt and Screen Door
S
Acrylic Lighted Grab Handle at Entry Door
S
Automatic Entrance Steps
S
Oversized Baggage Doors W/Locking Handles
S
Oversized Dark Tinted Frameless Windows
S
Patio Lighting
S
Porch Light w/Interior Switch
S
Automatic Hydraulic Leveling Jacks
S
Front, Side and Rear Clearance and Marker Lighting
S
Exterior Service Station - Includes: Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup, Towel Holder and Drainage Valves
S
Exterior Park Cable and Satellite Hookup
S
7-Way Round Tow Connection
S
Rear Under Hood Utility Light
S
Basement Storage LED Lighting
S
Unidirectional HD On-Air Antenna
S
Front and Rear Mud Flaps
S
Rear Ladder
S
Full Bay 90" Slide Tray
O
Roof Vent Rain Covers
O
King Universal Stationary Satellite
O
Cab Exterior
Automotive One Piece Bonded Windshield
S
Tinted Slider Driver Window
S
Top Mount Automotive Style Windshield Wiper System
S
Front Mount, Remote Power/Heated Mirrors w/Turn Signals and Side Cameras
S
Lower Front Clear Protective Film
S
Cab Interior
LED OptiView™ Instrument Panel
S
Dash Air Conditioning and Heat
S
Air Suspension Deflation System
S
Electronic Cruise Control
S
Windshield Wipers w/Delay
S
Keyless Entry w/Remotes
S
Switch for Power/Heated Mirrors
S
Switch for Exterior Service Lights
S
Driver Console w/Lower Storage Bin
S
Color Backup Monitor
S
10.2" Stereo w/Touch Screen w/AM/FM/CD/DVD/Bluetooth®/Navigation/APP Store/Wi-Fi
S
Sirius/XM® Satellite Radio Ready (Requires Subscription)
S
Driver Seat w/Reclining Back and Swivel
S
Passenger Seat w/Reclining Back, Swivel, and Manual Footrest
S
Passenger Seat w/Reclining Back, Swivel, and Power Footrest
O
Seat Belts - 3 Point Driver and Passenger
S
12V and USB Accessory Ports
S
110V AC Outlet at Dash and Passenger Area
S
Automotive Style Wrap Around Dash
S
Passenger Console
S
Front Power Roller Blind
S
Driver and Passenger Side Manual Roller Shades and Blinds
S
Radio Switch Main/Auxiliary Power at Dash
S
Momentary Battery Booster Switch - Connecting Chassis and House Batteries
S
Map Lights
S
Driver and Passenger Overhead Storage Cabinetry
S
Electric Alert Horn
S
Automatic Leveling Jacks Touchpad Controls
S
Hide-A-Loft™ Power Drop-Down Overhead Bunk w/LED TV
0
Interior
Sofa w/Full Sleeper Bed
S
Power Motion Lounge
O
Jack-Knife Dinette Booth
S
Interior Soft Touch Vinyl Ceiling
S
Composite Tile Flooring
S
Full Extension Drawer Guides w/Latches
S
Coordinating Window Treatments
S
Hidden Hinge Cabinet Doors
S
Manual Day/Night Roller Shades
S
110V/USB Receptacles
S
Energy Efficient LED 3" Flush Mount Ceiling Lighting
S
Accent Lighting
S
Stackable Washer and Dryer
O
Interior Entry
Power Entry Step Cover
S
Entry Step w/LED Accent Lighting
S
Entry Door Manual Roller Shade and Blind
S
Battery Disconnect Switch at Entry Console
S
Metal Interior Grab Handle
S
Kitchen
Stainless Steel Residential Refrigerator
S
2-Burner Recessed Induction Cooktop
S
Stainless Steel OTR Convection Microwave
S
Polished Solid Surface Galley Countertop
S
Shadow Box Glass Tile Backsplash w/Window and Shade
S
Single-Bowl, Stainless Steel Farmhouse Sink
S
Polished Solid Surface Sink Covers
S
Residential Faucet w/Pullout Sprayer
S
Adjustable Shelving
S
Full Extension Drawer Guides w/Latches
S
Waste Basket
S
Pantry Storage
S
Power Vent
S
Bedroom or Bunk Area
King Size Encore® Memory Foam Mattress
S
Designer Bedspread and Pillows w/Shams
S
Headboard
S
Remote Generator Start Switch
S
Bedroom Countertops
S
Spacious Wardrobe Storage w/Hardwood Doors
S
110V/USB Receptacles at Nightstands
S
Individual Reading Lights at Bed Overhead
S
CPAP Prep In Bedroom Overhead
S
Electric Fireplace
S
Bathroom
Lavy Countertop w/Backsplash
S
Residential Sink(s)
S
Residential Faucet
S
Medicine Cabinet w/Mirror
S
Fiberglass Shower
S
Glass Shower Door
S
Shower Skylight
S
Power Vent(s)
S
Designer Shower Head Assembly
S
Porcelain Toilet
S
Towel Ring(s) and Toilet Paper Holder
S
Manual Night Roller Shade(s)
S
Entertainment
Pop-up LED TV (Bedroom)
S
LED TV (Living Area)
S
LED TV (Front Overhead w/Hide-A-Loft™ Power Drop-Down Overhead Bunk Option)
O
Soundbar TV Sound System (Living Area)
S
Exterior Entertainment Center w/LED TV and Bluetooth® Soundbar
S
Electric & Utilities
Multiplex Wiring System
S
Batteries: (4) 6V Deep Cycle House Batteries
S
Service Panel: 50 Amp, 120 Volt
S
Power Converter: 60 Amp
S
Inverter: Single 2000W Pure Sine w/Remote
S
Generator: 6000W Onan® Quiet Diesel
S
Auto Gen Start
S
Generator Auto Changeover
S
Neutral Loss Protection
S
Transfer Switch w/Surge and Reverse Polarity Protection
S
Energy Management System (EMS)
S
Air Conditioner: (2) Roof Mount High Efficiency Ducted 13,500 BTU w/Chill Grill
S
Air Conditioner: (2) Roof Mount High Efficiency Ducted 15,000 BTU w/Chill Grill
O
CO and Smoke Detectors, Fire Extinguisher
S
Gravity Water Fill
S
High Capacity Water Pump
S
Water Filtration System (Whole Coach)
S
Black Holding Tank San-T-Flush System
S
Electric Power Cord Reel
O
Central Vacuum System
O
Cable TV/Satellite Hookup
S
Safety Package: Mobileye®, Safe-T-View™
O
Connectivity Package: Wi-Fi, Cell Booster, 300W Solar Panel
O
Chassis
Chassis
FREIGHTLINER XCR
GVWR
32400
GCWR
33000
Rear Axle GAWR
20000
Front Axle GAWR
12400
Hitch Rating
10000
Front Suspension: Neway Air Suspension
S
Rear Suspension: V-Ride™ Air Suspension
S
55 Degree Wheel Cut
S
Front Brakes: Meritor Air Drum Brakes w/ABS
S
Rear Brakes: Meritor Air Drum Brakes w/ABS
S
Tuned Sachs Shocks
S
Power Assisted Steering
S
LED OptiView™ Instrument Panel (FCCC)
S
BrakeSync (FCCC)
S
Engine Equipment
Cummins® ISB Turbocharged 6.7L, 340 HP w/700 ft. lbs. Torque
S
Allison® 2500 MH 6-Speed Automatic Transmission w/ Electronic Shift Control
S
160 Amp Alternator
S
(2) 12V Heavy Duty Chassis Batteries
S
Tires and Wheels
Front and Rear Tires
275/80R 22.5H
Front and Rear Aluminum Wheels
S
Valve Stem Extensions
S
Sizes
Wheelbase
206
Exterior Length
35'-4"
Exterior Width
102"
Exterior Height
12'10"
Interior Width
96"
Interior Height
84"
Interior Storage (cu.ft.)
183
Basement Storage (cu.ft.)
135
1st Awning Size
18'
Entry Door Awning
4'
# of Slideouts
3
Capacities
Fuel (gal)
100
Fresh Water (gal)
96
Gray Waste Water (gal)
65
Black Waste Water (gal)
45
Def Tank (gal)
13
250 Aqua-Hot® Diesel
S
Construction
Powerlock System™ 2 - Interlocking Walls to Roof
S
Dryseal Edge Coating for all Ceilings, Walls and Floors
S
Vacu-Bond™ Aluminum Framed Constructed Sidewalls, Roof and Floors
S
Premium Gel Exterior Vetrosina Fiberglass Skin (No Wood Substrate)
S
High Density Polystyrene Insulated Sidewalls, Roof and Floor
S
Quiet Insulated, Ducted A/C System
S
Full Pass Through Basement Storage w/Composite Floor Construction
S
Heated Fresh Water and Holding Tank Compartments (w/Furnace Operational)
S
Delta Foundation®
S
Steel Constructed Entry Step Box
S
Electric Slideout Systems
S
Painted Steel Frame Chassis Construction
S
Full Coverage Heavy Duty Undercoating
S
CSA Build
O
Exterior
Fiberglass Front Cap Assembly
S
Fiberglass Rear Cap Assembly
S
4-Color Premier Full Body Paint
S
ABS Wheel Well Trims
S
TPO Roof
S
Electric Patio Awning w/LED Lighting and Motion Sensor Retract
S
Powered Entrance Awning w/LED Lighting
S
Slideout Awning Toppers Above All Slideouts
S
Entry Door w/Radiused Upper, Deadbolt and Screen Door
S
Acrylic Lighted Grab Handle at Entry Door
S
Automatic Entrance Steps
S
Oversized Baggage Doors W/Locking Handles
S
Oversized Dark Tinted Frameless Windows
S
Patio Lighting
S
Porch Light w/Interior Switch
S
Automatic Hydraulic Leveling Jacks
S
Front, Side and Rear Clearance and Marker Lighting
S
Exterior Service Station - Includes: Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup, Towel Holder and Drainage Valves
S
Exterior Park Cable and Satellite Hookup
S
7-Way Round Tow Connection
S
Rear Under Hood Utility Light
S
Basement Storage LED Lighting
S
Unidirectional HD On-Air Antenna
S
Front and Rear Mud Flaps
S
Rear Ladder
S
Full Bay 90" Slide Tray
O
Roof Vent Rain Covers
O
King Universal Stationary Satellite
O
Cab Exterior
Automotive One Piece Bonded Windshield
S
Tinted Slider Driver Window
S
Top Mount Automotive Style Windshield Wiper System
S
Front Mount, Remote Power/Heated Mirrors w/Turn Signals and Side Cameras
S
Lower Front Clear Protective Film
S
Cab Interior
LED OptiView™ Instrument Panel
S
Dash Air Conditioning and Heat
S
Air Suspension Deflation System
S
Electronic Cruise Control
S
Windshield Wipers w/Delay
S
Keyless Entry w/Remotes
S
Switch for Power/Heated Mirrors
S
Switch for Exterior Service Lights
S
Driver Console w/Lower Storage Bin
S
Color Backup Monitor
S
10.2" Stereo w/Touch Screen w/AM/FM/CD/DVD/Bluetooth®/Navigation/APP Store/Wi-Fi
S
Sirius/XM® Satellite Radio Ready (Requires Subscription)
S
Driver Seat w/Reclining Back and Swivel
S
Passenger Seat w/Reclining Back, Swivel, and Manual Footrest
S
Passenger Seat w/Reclining Back, Swivel, and Power Footrest
O
Seat Belts - 3 Point Driver and Passenger
S
12V and USB Accessory Ports
S
110V AC Outlet at Dash and Passenger Area
S
Automotive Style Wrap Around Dash
S
Passenger Console
S
Front Power Roller Blind
S
Driver and Passenger Side Manual Roller Shades and Blinds
S
Radio Switch Main/Auxiliary Power at Dash
S
Momentary Battery Booster Switch - Connecting Chassis and House Batteries
S
Map Lights
S
Driver and Passenger Overhead Storage Cabinetry
S
Electric Alert Horn
S
Automatic Leveling Jacks Touchpad Controls
S
Hide-A-Loft™ Power Drop-Down Overhead Bunk w/LED TV
O
Interior
Sofa w/Queen Sleeper Bed
S
Power Motion Lounge
O
Jack-Knife Dinette Booth
S
Electric Fireplace (Living Area)
S
Interior Soft Touch Vinyl Ceiling
S
Composite Tile Flooring
S
Full Extension Drawer Guides w/Latches
S
Coordinating Window Treatments
S
Hidden Hinge Cabinet Doors
S
Manual Day/Night Roller Shades
S
110V/USB Receptacles
S
Energy Efficient LED 3" Flush Mount Ceiling Lighting
S
Accent Lighting
S
Stackable Washer and Dryer
O
Interior Entry
Power Entry Step Cover
S
Entry Step w/LED Accent Lighting
S
Entry Door Manual Roller Shade and Blind
S
Battery Disconnect Switch at Entry Console
S
Metal Interior Grab Handle
S
Kitchen
Stainless Steel Residential Refrigerator
S
2-Burner Recessed Induction Cooktop
S
Stainless Steel OTR Convection Microwave
S
Polished Solid Surface Galley Countertop
S
Shadow Box Glass Tile Backsplash w/Window and Shade
S
Single-Bowl, Stainless Steel Farmhouse Sink
S
Polished Solid Surface Sink Covers
S
Residential Faucet w/Pullout Sprayer
S
Adjustable Shelving
S
Full Extension Drawer Guides w/Latches
S
Waste Basket
S
Pantry Storage
S
Power Vent
S
Bedroom or Bunk Area
King Size Encore® Memory Foam Mattress
S
Designer Bedspread and Pillows w/Shams
S
Headboard
S
Remote Generator Start Switch
S
Bedroom Countertops
S
Spacious Wardrobe Storage w/Hardwood Doors
S
110V/USB Receptacles at Nightstands
S
Individual Reading Lights at Bed Overhead
S
CPAP Prep In Bedroom Overhead
S
Bathroom
Lavy Countertop w/Backsplash
S
Residential Sink(s)
S
Residential Faucet
S
Medicine Cabinet w/Mirror
S
Fiberglass Shower
S
Glass Shower Door
S
Shower Skylight
S
Power Vent(s)
S
Designer Shower Head Assembly
S
Porcelain Toilet
S
Towel Ring(s) and Toilet Paper Holder
S
Manual Night Roller Shade(s)
S
Entertainment
LED TV (Bedroom)
S
Pop-up LED TV (Living Area)
S
LED TV (Front Overhead w/Hide-A-Loft™ Power Drop-Down Overhead Bunk Option)
O
Soundbar TV Sound System (Living Area)
S
Exterior Entertainment Center w/LED TV and Bluetooth® Soundbar
S
Electric & Utilities
Multiplex Wiring System
S
Batteries: (4) 6V Deep Cycle House Batteries
S
Service Panel: 50 Amp, 120 Volt
S
Power Converter: 60 Amp
S
Inverter: Single 2000W Pure Sine w/Remote
S
Generator: 6000W Onan® Quiet Diesel
S
Auto Gen Start
S
Generator Auto Changeover
S
Neutral Loss Protection
S
Transfer Switch w/Surge and Reverse Polarity Protection
S
Energy Management System (EMS)
S
Air Conditioner: (2) Roof Mount High Efficiency Ducted 13,500 BTU w/Chill Grill
S
Air Conditioner: (2) Roof Mount High Efficiency Ducted 15,000 BTU w/Chill Grill
O
CO and Smoke Detectors, Fire Extinguisher
S
Gravity Water Fill
S
High Capacity Water Pump
S
Water Filtration System (Whole Coach)
S
Black Holding Tank San-T-Flush System
S
Electric Power Cord Reel
O
Central Vacuum System
O
Cable TV/Satellite Hookup
S
Safety Package: Mobileye®, Safe-T-View™
O
Connectivity Package: Wi-Fi, Cell Booster, 300W Solar Panel
O
Chassis
Chassis
FREIGHTLINER XCR
GVWR
32400
GCWR
33000
Rear Axle GAWR
20000
Front Axle GAWR
12400
Hitch Rating
10000
Front Suspension: Neway Air Suspension
S
Rear Suspension: V-Ride™ Air Suspension
S
55 Degree Wheel Cut
S
Front Brakes: Meritor Air Drum Brakes w/ABS
S
Rear Brakes: Meritor Air Drum Brakes w/ABS
S
Tuned Sachs Shocks
S
Power Assisted Steering
S
LED OptiView™ Instrument Panel (FCCC)
S
BrakeSync (FCCC)
S
BrakeSync (FCCC)
Engine Equipment
Cummins® ISB Turbocharged 6.7L, 340 HP w/700 ft. lbs. Torque
S
Allison® 2500 MH 6-Speed Automatic Transmission w/ Electronic Shift Control
S
160 Amp Alternator
S
(2) 12V Heavy Duty Chassis Batteries
S
Tires and Wheels
Front and Rear Tires
275/80R 22.5H
Front and Rear Aluminum Wheels
S
Valve Stem Extensions
S
Sizes
Wheelbase
242
Exterior Length
38'-4"
Exterior Width
102"
Exterior Height
12'10"
Interior Width
96"
Interior Height
84"
Interior Storage (cu.ft.)
179
Basement Storage (cu.ft.)
190
1st Awning Size
16'
2nd Awning Size
11'
Entry Door Awning
4'
# of Slideouts
4
Capacities
Fuel (gal)
100
Fresh Water (gal)
96
Gray Waste Water (gal)
65
Black Waste Water (gal)
45
Def Tank (gal)
13
250 Aqua-Hot® Diesel
S
Construction
Powerlock System™ 2 - Interlocking Walls to Roof
S
Dryseal Edge Coating for all Ceilings, Walls and Floors
S
Vacu-Bond™ Aluminum Framed Constructed Sidewalls, Roof and Floors
S
Premium Gel Exterior Vetrosina Fiberglass Skin (No Wood Substrate)
S
High Density Polystyrene Insulated Sidewalls, Roof and Floor
S
Quiet Insulated, Ducted A/C System
S
Full Pass Through Basement Storage w/Composite Floor Construction
S
Heated Fresh Water and Holding Tank Compartments (w/Furnace Operational)
S
Delta Foundation®
S
Steel Constructed Entry Step Box
S
Electric Slideout Systems
S
Painted Steel Frame Chassis Construction
S
Full Coverage Heavy Duty Undercoating
S
CSA Build
O
Exterior
Fiberglass Front Cap Assembly
S
Fiberglass Rear Cap Assembly
S
4-Color Premier Full Body Paint
S
ABS Wheel Well Trims
S
TPO Roof
S
Electric Patio Awning w/LED Lighting and Motion Sensor Retract
S
Powered Entrance Awning w/LED Lighting
S
Slideout Awning Toppers Above All Slideouts
S
Entry Door w/Radiused Upper, Deadbolt and Screen Door
S
Acrylic Lighted Grab Handle at Entry Door
S
Automatic Entrance Steps
S
Oversized Baggage Doors W/Locking Handles
S
Oversized Dark Tinted Frameless Windows
S
Patio Lighting
S
Porch Light w/Interior Switch
S
Automatic Hydraulic Leveling Jacks
S
Front, Side and Rear Clearance and Marker Lighting
S
Exterior Service Station - Includes: Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup, Towel Holder and Drainage Valves
S
Exterior Park Cable and Satellite Hookup
S
7-Way Round Tow Connection
S
Rear Under Hood Utility Light
S
Basement Storage LED Lighting
S
Unidirectional HD On-Air Antenna
S
Front and Rear Mud Flaps
S
Rear Ladder
S
Full Bay 90" Slide Tray
O
Roof Vent Rain Covers
O
King Universal Stationary Satellite
O
Cab Exterior
Automotive One Piece Bonded Windshield
S
Tinted Slider Driver Window
S
Top Mount Automotive Style Windshield Wiper System
S
Front Mount, Remote Power/Heated Mirrors w/Turn Signals and Side Cameras
S
Lower Front Clear Protective Film
S
Cab Interior
LED OptiView™ Instrument Panel
S
Dash Air Conditioning and Heat
S
Air Suspension Deflation System
S
Electronic Cruise Control
S
Windshield Wipers w/Delay
S
Keyless Entry w/Remotes
S
Switch for Power/Heated Mirrors
S
Switch for Exterior Service Lights
S
Driver Console w/Lower Storage Bin
S
Color Backup Monitor
S
10.2" Stereo w/Touch Screen w/AM/FM/CD/DVD/Bluetooth®/Navigation/APP Store/Wi-Fi
S
Sirius/XM® Satellite Radio Ready (Requires Subscription)
S
Driver Seat w/Reclining Back and Swivel
S
Passenger Seat w/Reclining Back, Swivel, and Manual Footrest
S
Passenger Seat w/Reclining Back, Swivel, and Power Footrest
O
Seat Belts - 3 Point Driver and Passenger
S
12V and USB Accessory Ports
S
110V AC Outlet at Dash and Passenger Area
S
Automotive Style Wrap Around Dash
S
Passenger Console
S
Front Power Roller Blind
S
Driver and Passenger Side Manual Roller Shades and Blinds
S
Radio Switch Main/Auxiliary Power/Dash
S
Momentary Battery Booster Switch - Connecting Chassis and House Batteries
S
Driver and Passenger Overhead Storage Cabinetry
S
Electric Alert Horn
S
Automatic Leveling Jacks Touchpad Controls
S
Hide-A-Loft™ Power Drop-Down Overhead Bunk w/LED TV
O
Interior
Sofa w/Full Sleeper Bed
S
Power Motion Lounge
O
Jack-Knife Dinette Booth
S
Electric Fireplace (Living Area)
S
Interior Soft Touch Vinyl Ceiling
S
Composite Tile Flooring
S
Full Extension Drawer Guides w/Latches
S
Coordinating Window Treatments
S
Hidden Hinge Cabinet Doors
S
Manual Day/Night Roller Shades
S
110V/USB Receptacles
S
Energy Efficient LED 3" Flush Mount Ceiling Lighting
S
Accent Lighting
S
Stackable Washer and Dryer
O
Interior Entry
Power Entry Step Cover
S
Entry Step w/LED Accent Lighting
S
Entry Door Manual Roller Shade and Blind
S
Battery Disconnect Switch at Entry Console
S
Metal Interior Grab Handle
S
Kitchen
Stainless Steel Residential Refrigerator
S
2-Burner Recessed Induction Cooktop
S
Stainless Steel OTR Convection Microwave
S
Polished Solid Surface Galley Countertop
S
Shadow Box Glass Tile Backsplash w/Window and Shade
S
Single-Bowl, Stainless Steel Farmhouse Sink
S
Polished Solid Surface Sink Covers
S
Residential Faucet w/Pullout Sprayer
S
Adjustable Shelving
S
Full Extension Drawer Guides w/Latches
S
Waste Basket
S
Pantry Storage
S
Power Vent
S
Bedroom or Bunk Area
King Size Encore® Memory Foam Mattress
S
Designer Bedspread and Pillows w/Shams
S
Headboard
S
Remote Generator Start Switch
S
Bedroom Countertops
S
Spacious Wardrobe Storage w/Hardwood Doors
S
110V/USB Receptacles at Nightstands
S
Individual Reading Lights at Bed Overhead
S
CPAP Prep In Bedroom Overhead
S
Bathroom
Lavy Countertop w/Backsplash
S
Residential Sink(s)
S
Residential Faucet
S
Medicine Cabinet w/Mirror
S
Fiberglass Shower
S
Glass Shower Door
S
Shower Skylight
S
Power Vent(s)
S
Designer Shower Head Assembly
S
Porcelain Toilet
S
Towel Ring(s) and Toilet Paper Holder
S
Manual Night Roller Shade(s)
S
Entertainment
LED TV (Bedroom)
S
LED TV (Living Area)
S
LED TV (Front Overhead w/Hide-A-Loft™ Power Drop-Down Overhead Bunk Option)
O
Soundbar TV Sound System (Living Area)
S
Exterior Entertainment Center w/LED TV and Bluetooth® Soundbar
S
Electric & Amp; Utilities
Multiplex Wiring System
S
Batteries: (4) 6V Deep Cycle House Batteries
S
Service Panel: 50 Amp, 120 Volt
S
Power Converter: 60 Amp
S
Inverter: Single 2000W Pure Sine w/Remote
S
Generator: 6000W Onan® Quiet Diesel
S
Auto Gen Start
S
Generator Auto Changeover
S
Neutral Loss Protection
S
Transfer Switch w/Surge and Reverse Polarity Protection
S
Energy Management System (EMS)
S
Air Conditioner: (2) Roof Mount High Efficiency Ducted 13,500 BTU w/Chill Grill
S
Air Conditioner: (2) Roof Mount High Efficiency Ducted 15,000 BTU w/Chill Grill
O
CO and Smoke Detectors, Fire Extinguisher
S
Gravity Water Fill
S
High Capacity Water Pump
S
Water Filtration System (Whole Coach)
S
Black Holding Tank San-T-Flush System
S
Electric Power Cord Reel
O
Central Vacuum System
O
Cable TV/Satellite Hookup
S
Safety Package: Mobileye®, Safe-T-ViewTM
O
Connectivity Package: Wi-Fi, Cell Booster, 300W Solar Panel
O
Chassis
Chassis
FREIGHTLINER XCR
GVWR
32400
GCWR
33000
Rear Axle GAWR
20000
Front Axle GAWR
12400
Hitch Rating
10000
Front Suspension: Neway Air Suspension
S
Rear Suspension: V-Ride™ Air Suspension
S
55 Degree Wheel Cut
S
Front Brakes: Meritor Air Drum Brakes w/ABS
S
Rear Brakes: Meritor Air Drum Brakes w/ABS
S
Tuned Sachs Shocks
S
Power Assisted Steering
S
LED OptiView™ Instrument Panel (FCCC)
S
BrakeSync (FCCC)
S
Engine Equipment
Cummins® ISB Turbocharged 6.7L, 340 HP w/700 ft. lbs. Torque
S
Allison® 2500 MH 6-Speed Automatic Transmission w/ Electronic Shift Control
S
160 Amp Alternator
S
(2) 12V Heavy Duty Chassis Batteries
S
Tires and Wheels
Front and Rear Tires
275/80R 22.5H
Front and Rear Aluminum Wheels
S
Valve Stem Extensions
S
Sizes
Wheelbase
242
Exterior Length
38'-4"
Exterior Width
102"
Exterior Height
12'10"
Interior Width
96"
Interior Height
84"
Interior Storage (cu.ft.)
172
Basement Storage (cu.ft.)
190
1st Awning Size
16'
2nd Awning Size
11'
Entry Door Awning
4'
# of Slideouts
4
Capacities
Fuel (gal)
100
Fresh Water (gal)
96
Gray Waste Water (gal)
65
Black Waste Water (gal)
45
Def Tank (gal)
13
250 Aqua-Hot® Diesel
S
Construction
Powerlock System™ 2 - Interlocking Walls to Roof
S
Dryseal Edge Coating for all Ceilings, Walls and Floors
S
Vacu-Bond™ Aluminum Framed Constructed Sidewalls, Roof and Floors
S
Premium Gel Exterior Vetrosina Fiberglass Skin (No Wood Substrate)
S
High Density Polystyrene Insulated Sidewalls, Roof and Floor
S
Quiet Insulated, Ducted A/C System
S
Full Pass Through Basement Storage w/Composite Floor Construction
S
Heated Fresh Water and Holding Tank Compartments (w/Furnace Operational)
S
Delta Foundation®
S
Steel Constructed Entry Step Box
S
Electric Slideout Systems
S
Painted Steel Frame Chassis Construction
S
Full Coverage Heavy Duty Undercoating
S
CSA Build
O
Exterior
Fiberglass Front Cap Assembly
S
Fiberglass Rear Cap Assembly
S
4-Color Premier Full Body Paint
S
ABS Wheel Well Trims
S
TPO Roof
S
Electric Patio Awning w/LED Lighting and Motion Sensor Retract
S
Powered Entrance Awning w/LED Lighting
S
Slideout Awning Toppers Above All Slideouts
S
Entry Door w/Radiused Upper, Deadbolt and Screen Door
S
Acrylic Lighted Grab Handle at Entry Door
S
Automatic Entrance Steps
S
Oversized Baggage Doors W/Locking Handles
S
Oversized Dark Tinted Frameless Windows
S
Patio Lighting
S
Porch Light w/Interior Switch
S
Automatic Hydraulic Leveling Jacks
S
Front, Side and Rear Clearance and Marker Lighting
S
Exterior Service Station - Includes: Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup, Towel Holder and Drainage Valves
S
Exterior Park Cable and Satellite Hookup
S
7-Way Round Tow Connection
S
Rear Under Hood Utility Light
S
Basement Storage LED Lighting
S
Unidirectional HD On-Air Antenna
S
Front and Rear Mud Flaps
S
Rear Ladder
S
Full Bay 90" Slide Tray
O
Roof Vent Rain Covers
O
King Universal Stationary Satellite
O
Cab Exterior
Automotive One Piece Bonded Windshield
S
Tinted Slider Driver Window
S
Top Mount Automotive Style Windshield Wiper System
S
Front Mount, Remote Power/Heated Mirrors w/Turn Signals and Side Cameras
S
Lower Front Clear Protective Film
S
Cab Interior
LED OptiView™ Instrument Panel
S
Dash Air Conditioning and Heat
S
Air Suspension Deflation System
S
Electronic Cruise Control
S
Windshield Wipers w/Delay
S
Keyless Entry w/Remotes
S
Switch for Power/Heated Mirrors
S
Switch for Exterior Service Lights
S
Driver Console w/Lower Storage Bin
S
Color Backup Monitor
S
10.2" Stereo w/Touch Screen w/AM/FM/CD/DVD/Bluetooth®/Navigation/APP Store/Wi-Fi
S
Sirius/XM® Satellite Radio Ready (Requires Subscription)
S
Driver Seat w/Reclining Back and Swivel
S
Passenger Seat w/Reclining Back, Swivel, and Manual Footrest
S
Passenger Seat w/Reclining Back, Swivel, and Power Footrest
S
Seat Belts - 3 Point Driver and Passenger
S
12V and USB Accessory Ports
S
110V AC Outlet at Dash and Passenger Area
S
Automotive Style Wrap Around Dash
S
Passenger Console
S
Front Power Roller Blind
S
Driver and Passenger Side Manual Roller Shades and Blinds
S
Radio Switch Main/Auxiliary Power at Dash
S
Momentary Battery Booster Switch - Connecting Chassis and House Batteries
S
Map Lights
S
Driver and Passenger Overhead Storage Cabinetry
S
Electric Alert Horn
S
Automatic Leveling Jacks Touchpad Controls
S
Hide-A-Loft™ Power Drop-Down Overhead Bunk w/LED TV
O
Interior
Sofa w/Full Sleeper Bed
S
Power Motion Lounge
O
Jack-Knife Dinette Booth
S
Electric Fireplace (Living Area)
S
Interior Soft Touch Vinyl Ceiling
S
Composite Tile Flooring
S
Full Extension Drawer Guides w/Latches
S
Coordinating Window Treatments
S
Hidden Hinge Cabinet Doors
S
Manual Day/Night Roller Shades
S
110V/USB Receptacles
S
Energy Efficient LED 3" Flush Mount Ceiling Lighting
S
Accent Lighting
S
Stackable Washer and Dryer
O
Interior Entry
Power Entry Step Cover
S
Entry Step w/LED Accent Lighting
S
Entry Door Manual Roller Shade and Blind
S
Battery Disconnect Switch at Entry Console
S
Metal Interior Grab Handle
S
Kitchen
Stainless Steel Residential Refrigerator
S
2-Burner Recessed Induction Cooktop
S
Stainless Steel OTR Convection Microwave
S
Polished Solid Surface Galley Countertop
S
Shadow Box Glass Tile Backsplash w/Window and Shade
S
Single-Bowl, Stainless Steel Farmhouse Sink
S
Polished Solid Surface Sink Covers
S
Residential Faucet w/Pullout Sprayer
S
Adjustable Shelving
S
Full Extension Drawer Guides w/Latches
S
Waste Basket
S
Pantry Storage
S
Power Vent
S
Bedroom or Bunk Area
King Size Encore® Memory Foam Mattress
S

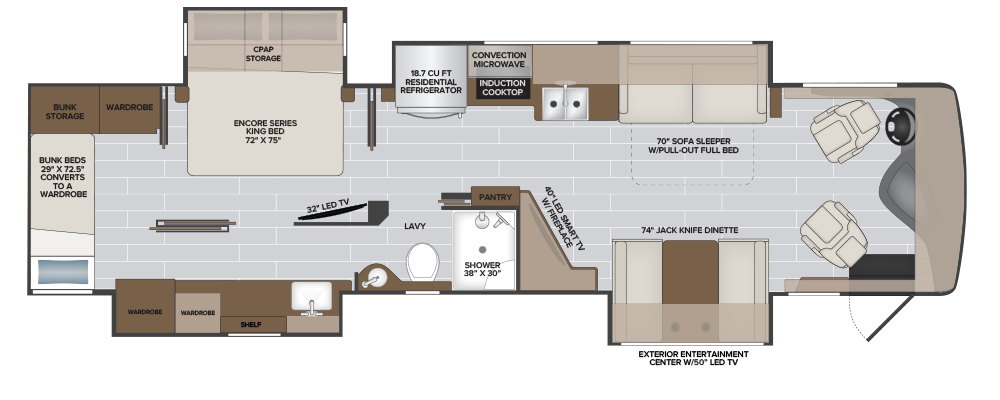

28" x 73" Bunk Beds w/4" Foam Mattress
S
Designer Bedspread and Pillows w/Shams
S
Headboard
S
Remote Generator Start Switch
S
Bedroom Countertops
S
Spacious Wardrobe Storage w/Hardwood Doors
S
110V/USB Receptacles at Nightstands
S
Individual Reading Lights at Bed Overhead
S
CPAP Prep In Bedroom Overhead
S
Bathroom
Lavy Countertop w/Backsplash
S
Residential Sink(s)
S
Residential Faucet
S
Medicine Cabinet w/Mirror
S
Fiberglass Shower
S
Glass Shower Door
S
Shower Skylight
S
Power Vent(s)
S
Designer Shower Head Assembly
S
Porcelain Toilet
S
Towel Ring(s) and Toilet Paper Holder
S
Manual Night Roller Shade(s)
S
Entertainment
LED TV (Bedroom)
S
LED TV (Living Area)
S
LED TV (Front Overhead w/Hide-A-Loft™ Power Drop-Down Overhead Bunk Option)
O
Soundbar TV Sound System (Living Area)
S
Exterior Entertainment Center w/LED TV and Bluetooth® Soundbar
S
Electric & Utilities
Multiplex Wiring System
S
Batteries: (4) 6V Deep Cycle House Batteries
S
Service Panel: 50 Amp, 120 Volt
S
Power Converter: 60 Amp
S
Inverter: Single 2000W Pure Sine w/Remote
S
Generator: 6000W Onan® Quiet Diesel
S
Auto Gen Start
S
Generator Auto Changeover
S
Neutral Loss Protection
S
Transfer Switch w/Surge and Reverse Polarity Protection
S
Energy Management System (EMS)
S
Air Conditioner: (2) Roof Mount High Efficiency Ducted 13,500 BTU w/Chill Grill
S
Air Conditioner: (2) Roof Mount High Efficiency Ducted 15,000 BTU w/Chill Grill
O
CO and Smoke Detectors, Fire Extinguisher
S
Gravity Water Fill
S
High Capacity Water Pump
S
Water Filtration System (Whole Coach)
S
Black Holding Tank San-T-Flush System
S
Electric Power Cord Reel
O
Central Vacuum System
O
Cable TV/Satellite Hookup
S
Safety Package: Mobileye®, Safe-T-ViewTM
O
Connectivity Package: Wi-Fi, Cell Booster, 300W Solar Panel
O
© 2025 REV Group, INC. All Rights Reserved
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
